    Efficacy of Carumcarvi L. (Caraway), Eculaptuscamaldulensisdehnh(Red Gum) Andnigella Sativa(Black Seed)Against Greater Wax Mothgalleria Mellonellal.Innaeus (Lepidoptera:Pyralidae)

    Wegdan Abass Hussien 1   Siefaldinn Mahammed Khaeir 2   Abubaker Haroun Mohamed Adam 3   Abd El bagi Elsayed Ali 4

    1Department of Plant Protection, College of Agricultural Studies, Sudan University of Science and Technology, Khartoum State, Sudan.

    2Department of Plant protection, College of Agricultural Studies, Sudan University of Science and Technology

    3Department of Crop Science, College of Agriculture, University of Bahri-Sudan.

    4Department of Plant protection, College of Agricultural Studies, Sudan University of Science and Technology


    The greater wax moth considered one of the most worldwide-spread pests of the bee wax. This Study was designed to investigate the insecticidal activity of Carumcarvi, Eculaptus camaldulensis and Nigella sativa against 3rd larval instar of G.mellonellathrough laboratory screening. Five concentrations (5%, 7.5%, 10%, 12.5% and 15%) of each plant extract were used in this experiment. Mortality (%) was recorded after 24, 48, 72 and 96 hrs post treatment. The results showed C. carvi, E. camaldulensis and N.sativahave insecticidal activity against 3rd_ instar larvae of G. mellonella. The highest concentration (15%) caused 90% ,86.7% and 80% larval mortality after 96 hrs for C. carvi,E. camaldulensis and N.sativarespectively. The statistical analysis revealed that there is a significant difference (p< .001) between all treatments and control. The results also clearly demonstrate that the C. carvi are significantly more toxic than E. camaldulensis and N. sativa, whereas the LC50 values were 5.4% forC. carvi,6.0% for E. camaldulensis and 6.2% for N. sativa.

    Author Contributions
    Received 09 Jul 2022; Accepted 09 Sep 2022; Published 16 Sep 2022;

    Copyright ©  2022 Wegdan Abass Hussien, et al.

    Creative Commons License     This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

    Competing interests

    The authors have declared that no competing interests exist.


    Wegdan Abass Hussien, Siefaldinn Mahammed Khaeir, Abubaker Haroun Mohamed Adam, Abd El bagi Elsayed Ali (2022) Efficacy of Carumcarvi L. (Caraway), Eculaptuscamaldulensisdehnh(Red Gum) Andnigella Sativa(Black Seed)Against Greater Wax Mothgalleria Mellonellal.Innaeus (Lepidoptera:Pyralidae). Journal of Agronomy Research - 4(4):1-8.

    Download as RIS, BibTeX, Text (Include abstract )

    DOI 10.14302/issn.2639-3166.jar-22-4247


    Honey bee is attacked by many pests such as ants, termites, beetles, wasps and moths. The most serious insect pest of bee keeping in Sudan is the greater wax moth (Galleria mellonella) 1. According to field observation in Khartoum and River Nile States apiaries, there was great damage caused by the greater wax moth and also causes death to bee brood.

    The greater wax moth (Galleria mellonella L.) is one of the most destructive insect pests that threaten apiculture. Newly hatched larvae seek out honey, nectar and pollen, and then chew their way down to the midrib of the comb. Tunneling breaks down the wax cells in the comb. It causes complete destruction of the bee colonies and affects the production quantity and quality and market value. In a survey study100% infestation of bee combs with wax moth was reported in Gezira and Khartoum States, with the mean infestation percentage in different parts of Sudan of 86% 2.

    Some insecticides such as methyl bromide, ethylene dibromide (EDB) and paradichlorobenzene (PDB) have been used to control this pest. Of these only one, paradichlorobenzene, appears to have a long- term future as a registered pesticide against the wax moth 3.

    Carumcarvi or caraway is the genus only annual and biennial economical one as spice, aperitif, and carminative in food and pharmaceutical industries. Caraway is widely used in food products due to its pleasant flavor and preservative properties. Caraway fruits are used as remedy to cure indigestion, pneumonia, and as carminative, appetizer, and galactagogue in different traditional systems 4.

    Eucalyptus camaldulensis is a tree under the genus Eucalyptus which contains specific compound like essential oil in tits different parts. Also it possesses some phytochemicals which claimed to have pesticidal and also medicinal activities on various ailments 5.

    Nigella sativaisa genus of annual plants in the Ranunculaceae family with approximately 14 species. Essential oil from dried fruits of the Nigella sativa L was isolated by hydrodistillation and tested for its repellent, toxic and developmental inhibitory activities against wheat flour pest Triboliumcastaneum 6 .

    The main objectives of this study istoevaluate firstly the ethanolic and n-Hexane extracts of Caraway (Carumcarvi) Black seed (Nigellasativa) Red Gum (Eucalyptus camaldulensis) against the 3rd larval instars of the Greater wax moth Galleria mellonellaand secondlyis to test the lethal effects of these extracts and determine their LC50 and LC90 and values against tested larval instars.

    Materials and Methods

    The experiments were conducted in the Research Laboratory, College of Agricultural Studies (Shambat), Sudan University of Science and Technology (SUST), during March - May, 2021. The average temperature is between 25-32°C.

    Larval instars of G. mellonella were collected from local honey bee apiary located at Khartoum state, shambatarea. The infested honey bee wax combs contained all stages of insect development were used to establish the laboratory stock culture for further studies. The larvae were reared on an artificial diet 7.The moths were placed and allowed to reproduce in the laboratory with a temperature of 31±1°C, 66.28% RH and 12L: 12D photoperiod (These were the average conditions for all or experiments and placed in a closed aquarium tank (9.2x16x9.2 cm), covered with muslin cloth and brought to the laboratory for mass rearing.

    Early larval instars were reared in groups of 100 larvae in plastic cages 19 cm in diameter covered with muslin cloth and fed on bee wax. The 3rd_ larval instars were reared separately in plastic cups 5 cm in diameter and 7 cm. in height to avoid cannibalism. The bottom of each cup was filled with bee wax for pupations. Upon emergence, the adults were transferred to glass cages 30*30*30 cm. covered with muslin cloth and fed on 10% sugar solution 8. The glass cages contained a comprised folded paper sheets for the deposition of eggs. The rearing process continued until a sufficient number of homogenous populations of larvae was collected for the experiments.

    For preparing plant materials and extraction methods, seeds of C. carvi and N. sativa L. were collected from Omdurman market. Leaves of E. camaldulensis were collected from Shambat area in the Khartoum State and brought to the laboratory for shade-drying. After complete dryness the plant samples were crushed into powder by an electronic blender. The sample was weighed and then solvents were added sequentially from the lowest polarity N-hexane to the highest polarity ethanol in council flask, 1600 liters of ethanol were added to each sample and placed in a shaker at 156 rpm for two days using the reduce pressure filter and then the alcoholic extract was collected then the sample was evaporated using rotary evaporator to get rid of the added solvent down to the drying stage. Then, the sample was weighed and the percentage of the extract was calculated, then five dilutions were taken from each extract.

    The third larval instar of the Greater wax moth G. mellonella was used in this study 9. However, ten (10) newly hatched instar larvae of the greater wax moth were placed in each dish contained 5g. of small pieces of pure wax, and then 5ml of each prepared concentration of each tested material was sprayed to the Petri dish above the pieces of wax and covered to prevent larvae from escaping.

    The experiments were conducted under the laboratory conditions of 31±1°C, 66.28% RH and 12L: 12D photoperiod. Treated larvae were provided with fresh wax pieces till the end of the experiment. The mortality percentage was recorded 24, 48, 72 and 96 hrs. after application. The collected data were statistically analyzed using analysis of variance (ANOVA); Duncan's Multiple Range Test and Statistix 8 for means separation. Also the data were subjected to probability analysis using SPSS 16.0 software to get LC50 and LC90.

    Results and Discussion


    All results showed that the mortality % increases with the increase of both concentration and exposure period.

    The results in table 1 showed the E. camaldulensis leaves gave highest mortality % (86.7%) at the highest concentration (15%) after 96 hours (the longest exposure period), followed by N. sativa seeds under the same condition and gave mortality of 73.3%, while the C. carvi seeds records gave the lowest mortality % (66.7%) under the same condition.

    Considering the result in table 2, it revealed the higher concentration (15%) of C.carvi seeds gave 90 % mortality after 96 hours, while under the same concentration, E. camaldulensis leaves gave 83.3 % mortality after 96 hours and N.sativa seeds gave 80 % mortality after 96 hours. The least concentrations (5%, 7.5%and 10%) of n, hexane extract of N.sativa seeds after 24 hours gave mortality % of 23.3 %, 26.7% and 33.3% respectively compared with the control which records the worst percentage result throughout the experimental period.

    The data presented in table 3 and Figure 1 Provided clear evidence that the oily extracts of all tested plants have a lethal effect against the 3rd larval instars of the Greater wax moth. Probability analysis of the mortality data showed that the lethal concentrations of the extracts vary from one plant to another. The lowest LC50 value for n-hexane extract was recorded by C.carvi (5.4), followed by E.camaldulensis (6.0) and N. sativa (6.2).

    Regarding the results in table 4 and Figure 2, they showed ethanolic extracts of all tested plant scored a significantly lethal effect against the 3rd larval instars of the Greater wax moth. The probability analysis of the mortality data showed that the lethal concentrations of the extracts differ from one plant to another. The lowest LC50 value for ethanolic extract was recorded by E.camaldulensis(5.0), followed by N. sativa(7.0) and C. carvi(7.7).

    Table 1. Lethal effects of N.sativaseeds,C.carvi seeds and E. camaldulensisleavesethanolic extract against 3rd larval instar G.mellonella.Shambat-Sudan (01∕05∕2021)
    Treatments Conc. (%) Means mortality (%)
    Exposure time (hrs.)
    24 48 72 96
     N. sativa+Ethanol  5 23.3 (4.8)f 26.7 (5.2)fg 36.7 (6.1)fg 43.3 (6.6)f
    7.5 26.7 (5.2)ef 33.3 (6.1)e 46.7 (6.9)de 53.3 (7.3)de
    10 33.3 (5.8)de 40.0 (6.4)cde 53.3 (7.3)cd 56.7 (7.6)cde
    12.5 36.7 (6.1)cd 43.3 (6.9)bcd 56.7 (7.6)bc 66.7 (8.2)bc
    15 43.3 (6.6)abc 50.0 (7.1)bc 63.3 (8.0)ab 73.3 (8.6)b
     C. carvi+Ethanol  5 20.0 (4.5)f 23.3 (4.8)g 33.3 (5.8)g 43.3(6.6)f
    7.5 26.7 (5.2)ef 33.3 (5.8)ef 43.3 (6.6)ef 50.0 (7.1)ef
    10 33.3 (5.8)de 40.0 (6.4)cde 46.3 (6.9)de 53.3 (7.3)de
    12.5 40.0 (6.4)bcd 50.0 (7.1)bc 53.3 (7.3)cd 63.3 (8.0)bcd
    15 46.7 (6.9)abc 53.3 (7.3)ab 56.7 (7.6)bc 66.7 (8.2)bc
     E. camaldulensis+Ethanol 5 26.7 ( 5.2)ef 33.3 ( 5.8)ef 43.3 ( 6.6)ef 53.3 ( 7.3)de
    7.5 33.3 (5.8)de 40.0 (6.3)de 46.7 (6.9)de 56.7 (7.6)cde
    10 43.3 (6.6)abc 50.0 (7.1)bc 56.7 (7.6)bc 66.7 (8.2)bc
    12.5 50.6 (7.1)ab 56.7 (7.6)ab 63.3 (8.0)ab 73.3(8.6)b
    15 53.3 (7.3)a 63.3 (8.0)a 73.3 (8.6)a 86.7 (9.3)a
    Control - (0.7000)g (0.7000)h (0.7000)h (0.7000)g
    C. V. %   8.9 7.3 5.9 5.6

    * Means followed by the same letter (s) are not significantly different at (p< .001).
    * Means between brackets are transformed according to √ (x+0.5 )
    *C. V. = Coefficient of Variation.


    Table 2. Lethal effects of N.sativaseeds,C.carvi seeds and E. camaldulensisleavesN-hexane extract against 3rd larval instarG.mellonella.Shambat-Sudan (06/05/2021)
    Treatments Conc. (%) Means mortality (%)
    Exposure time (hrs.)
    24 48 72 96
     N. sativa+N-hexane  5 23.3 (4.8)f 26.7 (5.2)g 33.3 (5.8)d 46.7 (6.9)h
    7.5 26.7 (5.2)ef 33.3 (5.8)fg 43.3 (6.6)cd 53. (7.3)fgh
    10 33.3 (5.8)de 40.0 (6.4)def 50.0 (7.1)de 63.3 (8.0)de
    12.5 43.3(6.6)bc 46.7 (6.9)cd 60.0 (7.8)bcd 73.3 (8.6)bcd
    15 46.7 (6.9)abc 53.3 (7.6)b 70.0 (8.4)abc 80.0 (8.9)ab
     C. carvi+N-hexane 5 20.0 (4.5)f 23.3 (5.8)fg 43.3 (6.6)ef 50.0(7.1)gh
    7.5 33.3 (5.8)de 40.4 (6.6)de 50.0 (7.1)de 60.0 (7.8)ef
    10 40.0 (6.3)cd 53. (7.3)bc 63.3 (7.9)bcd 66.7 (8.2)cde
    12.5 46. (6.9)abc 63.3 (8.0)ab 70.0 (8.4)abc 76.7 (8.8)bc
    15 56.7 (7.6)a 73.3 (8.6)a 80.0 (8.9)a 90. (9.5)a
     E. camaldulensis+N-hexane 5 23.3 (4.8)f 33.3(5.8)fg 40.0(6.3)ef 46.7 (6.9)h
    7.5 33.3 (5.8)de 36.7(6.1)ef 50.0(7.1)de 56.7 (7.6)efg
    10 40.0(6.4)bcd 46.7 (6.9)cd 56.7(7.6)cd 63.3(8.0)de
    12.5 46.7 (6.9)abc 56.7 (7.6)b 66.7(8.2)abc 73.3 (8.6)bcd
    15 50.0(7.1)ab 63.3 (8.0)ab 73.3(8.6)ab 83.3 (9.2)ab
    Control - (0.7000)g (0.7000)h (0.7000)g (0.7000)i
    C. V. %   7.9 6.4 7.6 5.1

    * Means followed by the same letter (s) are not significantly different at (p< .001).
    * Means between brackets are transformed according to √ (x+0.5 )
    *C. V. = Coefficient of Variation
    Table 3. LC values for N-hexane extracts of tested plants against 3rd larval instar of G. mellonellaafter 96 hrs of exposure. Shambat-Sudan (11/05/2021)
    Plant extract LC* values and 95% Confidence limits (Lower – Upper)
    LC 50   LC 90 Chi- square χ2
    Carum carvi 5.4(-0.4 - 19.2) 16.4(13.5 - 25.3) 0.6
    Eucalyptus camaldulensis 6.0(-0.3 – 8.2) 18.7 (14.9 – 32.9) 0.03
    Nigella sativa 6.2 (-0.6– 8.5) 19.6(15.4 – 37.1)  0.14

    * LC = Lethal Concentration
    Table 4. LC values for ethanolic extracts of tested plants against 3rd larval instar of G. mellonellaafter 96 hrs of exposure. Shambat-Sudan (16/05/2021)
    Plant extract LC* values and 95% Confidence limits (Lower – Upper)
    LC 50   LC 90 Chi- square χ 2
    Eucalyptus camaldulensis 5.0(-3.6 – 7.6) 18.3 (14.4 – 34.1)  0.1
    Nigella sativa 7.0 (-3.3– 9.7 ) 23.6(17.3 – 68.2) 0.6
    Carum carvi 7.7(-27.8 -11.3) 28.6(19.2 - 315.7)  0.4

    LC = Lethal Concentration

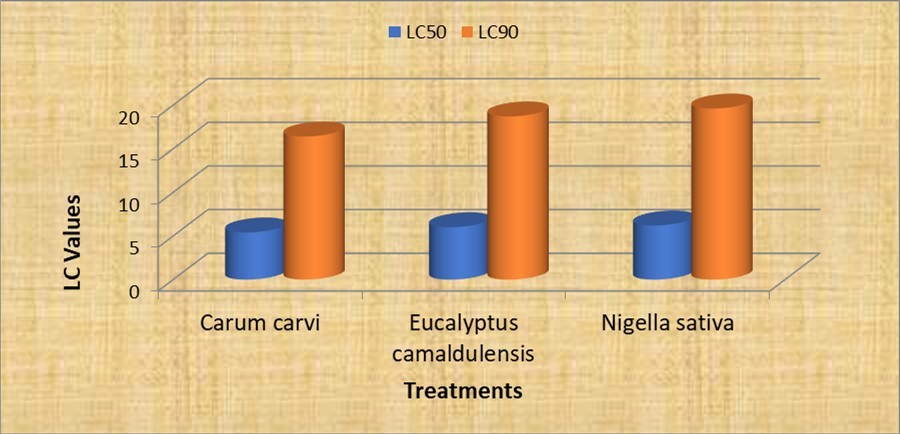

    Figure 1. LC values for n-Hexane extracts of C.carviseeds,E. camaldulensisleaves, and N.sativaseeds against 3rd larval instar of G.mellonella after 96 hrs of exposure.
    Figure 1.

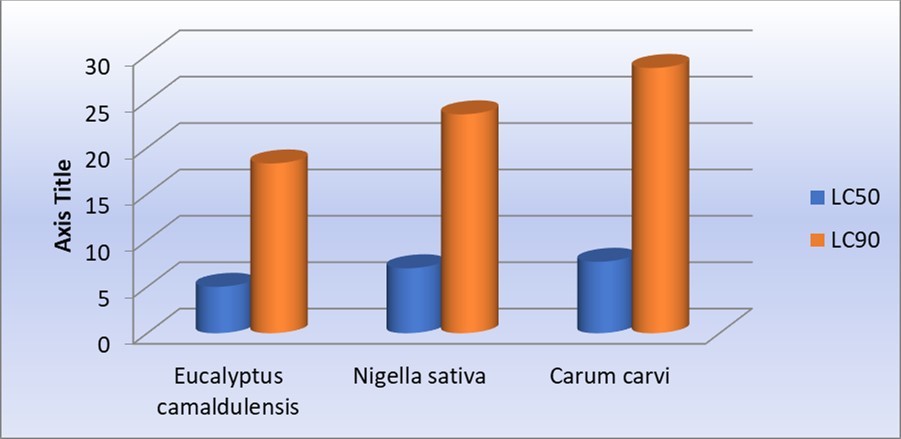

    Figure 2. LC values for ethanolic extracts of E. camaldulensisleaves,N.sativa andC.carvi seeds against 3rd_ larval instar of G.mellonella after 96 hrs of exposure
    Figure 2.


    Plants have long been proposed as smart alternatives to synthetic insecticides for pest management because they are safe to the environment and human health. More than thousands species of plants have been reported to have chemicals in its various parts which have insecticidal properties. However, a few of them were used for insect control on a commercial scale 10. The study findings clearly proved the efficacy of C. carvi against 3rd_ larval instar of G. mellonella. In fact its highest concentration (15%) gave 90% mortality of tested larvae after 96 hrs of application.

    This result agree with results obtained a researcher 11 who analyzed the repellent effects of six essential oils extracted from caraway, grapefruit, clary sage, strawberry and thyme white on Sitophilus oryzae. They found that the highest repellent activities (96.7%) were obtained with caraway oil. Also these results agreed with the results of other researchers 12 who found that the volatile oil carvone against the larvae and adult of greater wax moth has insecticidal activity.

    The mortality % recorded after72 and 96 hours of exposure15% and12.5% respectively of N-hexane extract of E. camaldulensis leaves does not change. The present results are also in line with research the finding that a species of Eculayptus successfully controlled the larval stages of the stored wax greater wax moth 13. This maybe due to an acute action of this plant extract. Similar results were obtained by researchers 14; who found that the leaves of E. camaldulensis duration of larval, pupal and adult stages and incubation period. The effect is dose dependent. Also these results agreed withthe results of researchers 15; who studied the effect of essential oils extracted from five Eculayptusn species and found that all tested essential oils have larvicidal effect against Tribolium castaneum and Tribolium confusum.

    The results revealed that the N. Sativa N, hexane extract at the concentration 15% gave mortality percentage of 80% after 96 hours. The present results are also in line with results of other researchers 16, 17 who found that N. Sativa at higher concentration was better than conventional insecticides in tropical stored pest. Similar results were demonstrated by 18 who emphasis that the highest concentration of N. Sativa gave a 100% mortality against Tuta absoluta.

    Conclusion and Recommendations

    The obtained results clearly proved that the C. carvi, E. camaldulensis and N. Sativa have insecticidal activity against 3rd_ instar larvae of G. Mellonell. Through this study, it was found that the N, hexane extract of C. carvi seeds was the best, followed by the ethanolic E. Camaldulensis leaves extract and then the n, hexane E. Camaldulensis leaves extract and then N. Sativan, hexane extract. This cleary means that the above mention plants can be used in an integrated control program against greater wax moth.

    Caraway (C. carvi) N, hexane extract can be used as a bio pesticides to safe environment; the following recommendations are of importance; firstly is to evaluate doses higher than tested one might give higher mortality percentage; secondly more studies are highly encouraged for confirmation.


    1.Elniweiri MAA, El-sarrag MSA, Satti A A. (2005) Detection distribution and incidence of insect pests and predators of honey bees (Apismellifera L.) in Sudan. , Albuhuth 9(1), 104-122.
    2.Elniweiri MAA, Shaibi T, omer E. (2013) Mitochondrial gentic analysis of the honeybee (Apismellifera L). (Hymenopetera, Apidae) in the Arab Land Persian Gulf Crop Protection 2(1), 25-34.
    3.Aonymous. (2009) Wax moth and comb storage-Autum Advise. The British Bee Keeper’s Association.
    4.Rasooli, Rasooli Allameh, Allameh I, A. (2016) caraway (Carumcarvi L.) essential oils, in Essential oils in food preservation, flavor and safety. 287-293.
    5.Malhotra S K. (2006) . Hand book of Herbs and Spices 3, 270-298.
    6.Sangi S, Ahmed S P, Channa M A, Ashfaq M, Mastoi S M. (2008) A new and novel treatment of opioid dependence: Nigella sativa 500 mg.J. , Ayub. Med. Coll. Abbottabad 20, 118-124.
    7.Metwally H M S, G A Hafez, M A Hussein, H A Salem, Saleh M M E. (2012) Low cost artificial diet for rearing the greater wax moth,Galleria mellonellaL. (Lepidoptera: Pyralidae) as a host for entomopathogenic nematodes. , Egyptian Journal of Biological Pest Control 22(1), 15.
    8.Jallow M F A, Matsumura M, Suzuki Y. (2001) Oviposition preference and reproductive performance of Japanese Helicoverpaarmigera (Hübner) (Lepidoptera:. , Noctuidae). Appl. Entomol. Zool 36(4), 419-426.
    9.Pastagia J J, Patel M B. (2007) Biology Of Galleria mellonella L. on brood ofApisceranaand PF. , J. Plant Prot Environ 4, 85-88.
    10.Mardi H G, Sulaiman A A. (2018) Effectof Hargal(Solenostemmaargel(Del) Hayne)shoot powder aqueous extract on some tomatoinsect pests. , SUST Journal of Agricultural and Veterinary Sciences 19(1), 41-52.
    11.Yoon C, S H Kang, S A Jang, Y J Kim, G H Kim. (2006) Repellent Efficacy of Caraway and Grapefruit Oils for Sitophilusoryzae (Coleoptera: Curculionidae).J. Asia Pac. , Entomol 10, 263-267.
    12.Mubasshir S, Muhammad A A, Pingli D, James D E. (2021) The larvicidal and adulticidaleffects of selected plant essential oil constituents on Greater wax moth. , Jouranalof Economic Entomology 114(1), 397-402.
    13.Saadiya M S, Hammam A, K A Sara. (2019) . Insecticidal activity against the greater wax moth (Galleria mellonellaL.) and Chemical Compostion of Five Plant Essential Oils.4: 145-161.
    14.Soliman MMM, Mohanny M K, AM Mansour MH Seddik. (2019) Effect of some plant extracts against the greater wax mothGalleriamellonellaL. , International Journal of Agricultural Science 1(2), 1-11.
    15.Fathi A, Shakarami J. (2014) Larvicidal effects of essential oils of five species of Eucalyptus againstTriboliumconfusumandT.castaneum(Herbest). , International Journal of Agriculture and Crop Sciences 7(5), 220-224.
    16.Adedire C O, Ajayi T S. (1996) Assessment of the insecticidal properties of someplant extracts as grain protectants against maize weevil. , Nigerian J. Entomol.;13: 93-101.
    17.Okonkwo E U, Ewete F K. (2000) Comparative evaluation ofDennettiatripetalaSeed powder, Pirimiphos-methyl andAluminium phosphidetablet againstCallosobruchusmaculatesFabricius (Coleoptera: Bruchidae) and their biochemical and organoleptic effects on stored cowpea. , Journal of Agricul. Res 1(1), 48-53.
    18.Adil B, Tarik A, Kribii A, Ounine K. (2015) . The Study of the Insecticidal Effect ofNigella SativaEssential Oil AgainstTutaabsolutaLarvae. International Journal of Scientific and Technology Research 4(10), 88-90.
