    Effect of Hours of Use and Age in Years in Estimating Repair and Maintenance Costs for Two Sizes of Agricultural Tractors in Northern Sudan

    Mohamed Hassan Dahab 1   Abdalla N. O. Kheiry 2   Montasir Ahmed Gafar Elfaki 1

    1Faculty of Agricultural, University of Khartoum, Sudan

    2Departments of Agricultural Engineering, Colleges of Agricultural Studies, Sudan University of Science and Technology

    Abstract

    Repair and maintenance cost is considered as one of important items for machinery management and selection. The present study was carried out in Dongola area for tractor repair and maintenance costs estimation. The data was collected from records of Elshimalya Company for Agricultural Inputs. Forty four tractors rep resenting two sizes of tractors, 75hp and 150hp used in the area were selected for this study. Based on the data collected, regression correlation analysis was carried out and mathematical models were derived to predict the accumulated repair and maintenance (R and M) costs as percent of purchase price in relation to accumulated hours of use and age (years) for each tractor size, and also for the two sizes collectively. Five model forms (linear, logarithmic, polynomial, power and exponential) were derived and the power function was found the best fit to explain the relation. The accumulated Rand M costs as percent of purchase price (Y) was increased as the accumulated hours of use (x) and age (g) of the tractor in years were increased. A high correlation was found between the accumulated R and M cost and both accumulated hours of use and tractor age in years (Average R2 = 0.93).

    It was concluded that the power function was the best fit for repair and maintenance cost estimations and the following relations may be used as an average for estimation of the accumulated R and M costs as percent of purchase price (Y) with accumulated hours of use (x) and age (g) of the tractor: Y=0.028x0.662 (mean) Y=12.294g1.276 (mean).

    Author Contributions
    Received 18 Jun 2021; Accepted 13 Oct 2021; Published 16 Oct 2021;

    Academic Editor: Abubaker Haroun Mohamed Adam, Department of Crop Science (Agronomy), College of Agriculture, Bahri University- Alkadaru- Khartoum -Sudan.

    Checked for plagiarism: Yes

    Review by: Single-blind

    Copyright ©  2021 Mohamed Hassan Dahab, et al.

    License
    Creative Commons License     This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

    Competing interests

    The authors have declared that no competing interests exist.

    Citation:

    Mohamed Hassan Dahab, Abdalla N. O. Kheiry, Montasir Ahmed Gafar Elfaki (2021) Effect of Hours of Use and Age in Years in Estimating Repair and Maintenance Costs for Two Sizes of Agricultural Tractors in Northern Sudan . Journal of Agronomy Research - 4(2):1-11.

    Download as RIS, BibTeX, Text (Include abstract )

    DOI 10.14302/issn.2639-3166.jar-21-3875

    Introduction

    Agricultural tractor is one of the most important energy and power sources in agricultural mechanization1. It requires high initial capital investment. The introduction of modern technology during the last century resulted in rapid growth of farm production. Tractors and farm machinery are important samples of this modern technology2. Tractor costs have great influence on farm business profit. Knowledge of tractor costs for farm operations has a prime importance in making management plans and decisions especially in comparing different tractor types and models thereby assisting in the selection of a more appropriate farm tractor. Costs of owning and operating farm machinery represent 35% to 50% of the costs of agricultural production when the land is excluded3. The repair and maintenance (R&M) cost is an important item in the costs of ownership and operation. R&M cost is a function of machine age and use4. In general, the costs other than those for R&M usually decrease with increasing usage, but the reverse is true with respect to R&M costs. The cost of R&M is usually about 10% of the total cost; as the machine age increases the cost increases until it becomes the largest cost item of owning and operating the farm machines5. Agricultural engineers have carried many studies regarding R&M of farm machines. Several studies were conducted in both developed and developing countries either to develop models to determine the cost during a certain period or to get absolute numbers to represent owning and operating certain equipment 6, 7, 8, 9. Using of American and European mathematical relations to estimate R and M costs in under developed and developing countries produced unrealistic and misleading results and therefore, these countries developed their own mathematical models10, 11, 12. Poor and irregular maintenance reduce tractor reliability, increases fuel consumption, deceases engine power and life and increases exhaust emission13.

    In Sudan, agricultural tractors introduced in early nineteen-nineties and there are many tractor makes, models and sizes now distributed between irrigated and rain-fed agricultural farms. These tractors are owned by people from both the private and public sectors and even some are owned by individual farmers and they often work for more than 1200 hours per year14. Tractors have been used in Sudan, as a power source in agriculture for many years. The total number of tractors officially imported into the country between 1984 and 1994 increased from 23,590 units to 32,096 units (FAO, 1995)14. In Sudan, machinery repair, maintenance, and fuel and lubricants consumption is not given enough attention. About 40% of farm machinery was out of work very quickly due to lack of proper maintenance and un availability of genuine spare parts or using of spurious and non-genuine spare parts of low prices. There are some prediction models for tractors repair and maintenance costs in the Sudan were developed 15, 16, 17. They decided that the correlation between repair and maintenance costs as a percent of tractor initial purchase price and the tractor accumulated hours of use would be best described by a power function equation. There were variations between these models in the predictions for the different tractors. They were varied in structural components due to differences in tractors specifications and conditions and locations of work, therefore, the present study was carried to develop computer models for repair and maintenance costs estimation in relation to hours of use and age for two sizes of diesel engine agricultural tractors in Dongla area.

    Materials and Methods

    Materials

    The data of the study was collected from Dongola area-northern Sudan. The soil is sandy and clay particles, characterized by very low perm ability, deep cracking when dry, poor in nitrogen and organic matter. The climate of the area is classified as dry desert zone.

    There are many makes of tractors working in the area, but the Massey Ferguson, tractors are the most common makes available in the area, and are chosen to carry-out this study. Their sizes are mostly in the range of 75–150hp. The total number selected for this study was (44), from which twenty two were (75hp), and the other twenty-two were (150hp). The tractor's technical specifications are shown in Table 1 below.

    Table 1. Specifications of tractors used
    Item Tractor (A) Tractor (B)
    Country of make UK Brazil
    Engine rated power 75 hp 150 hp
    Engine speed rpm 2200
    Drawbar power 63.2 hp 127.5 hp
    Engine type 4-cyl. Diesel 4-cyl. Diesel
    PTO rpm 540/1000 540/1000
    Fuel tank capacity 33.6 gal. 61 gal.
    Base weight   5670 kg
    Clutch Hydr. Wet multi-disc Hydr. Wet multi-disc
    Brakes independent hydraulic wet disc independent hydraulic wet disc
    Chassis 2WD 4WD
    Steering Hydraulic Electro-hydraulic, Hydraulic Electro-hydraulic,

    Many sources were used to collect data concerning tractors repair and maintenance costs they included Elshamalia Company of Agricultural input, Mechanics, Engineers, Agricultural Engineers, individuals and operators, and the workshops. The resources were interviewed,

    Methodology

    A questionnaire was prepared to collect the required data then a survey was carried out in the site of the study to interview the target sources of data. The questionnaire included information about: Tractor age, model and make, initial purchase price ($), annual hours of use (hr), annual area covered (fed), annual repair costs ($), annual maintenance costs ($), annual number of repairs, labor cost/year ($).

    Parameters Calculation

    Tractor Systems Failures and Repair and Maintenance Distribution

    The total costs of repair and maintenance for the different tractor systems and types were carried out by summation of failures during the period of study and calculating the costs of repairing and maintenance for the systems and the two types of tractors.

    Annual Hours of Use

    The total accumulated hours of use were calculated by summation of the total mean annual hours of use – which was calculated on the basis of effective working hours of the tractor– up to the last year of the age for each of the selected tractor make9.

    Accumulated Repair and Maintenance Costs Computation

    The annual repair and maintenance costs for each age were calculated as follows: Annual repair and maintenance costs=annual repair costs +annual maintenance costs.

    Tractors of the same type and age were grouped together and the annual repair and maintenance costs of these groups were calculated, then the annual repair and maintenance costs were expressed as percentage of the initial purchase price of the tractor.

    The total accumulated repair and maintenance costs as a percentage of initial purchase prices were calculated by summation of mean annual repair and maintenance costs as a percentage of initial purchase prices for all years in the age of the selected tractors9.

    Statistical Analysis

    Using the SPSS computer program, the relationship between the accumulated annual repair and maintenance costs as a percentage of initial purchase price and accumulated annual hours of use was computed.

    Results and Discussion

    Tractor Systems Failures and Repair and Maintenance Distribution

    It was observed the average repair and maintenance costs of different systems for the two tractor size generally increased with age, but the rate of increase varies for the two sizes. However, the mean R&M cost of the two tractor types showed relatively higher repair and maintenance costs occurred from year 2 and decreased in year 3 after that increased at years 4 and 5 (Table 2a and Figure 2). The engine and fuel systems accounted for more than 53% of the total accumulated R & M costs of the two tractor sizes when five years ownership was considered (Figure 1). The distribution of the accumulated R & M cost of different tractor systems was almost similar for the two types, but the hydraulic system R & M cost of type (150hp) was higher compared with the 75hp type.

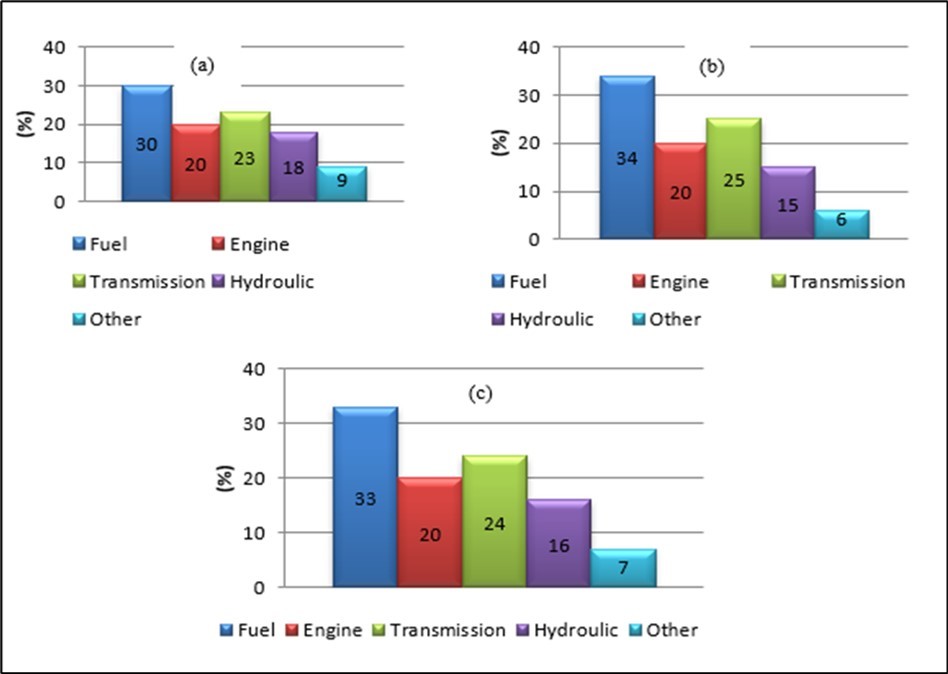

    Figure 1. Distributions of accumulated repair and maintenance of agric tractor systems (a) 75hp tractor type (b) 150hp tractor type (c) mean of the two types
    Figure 1.

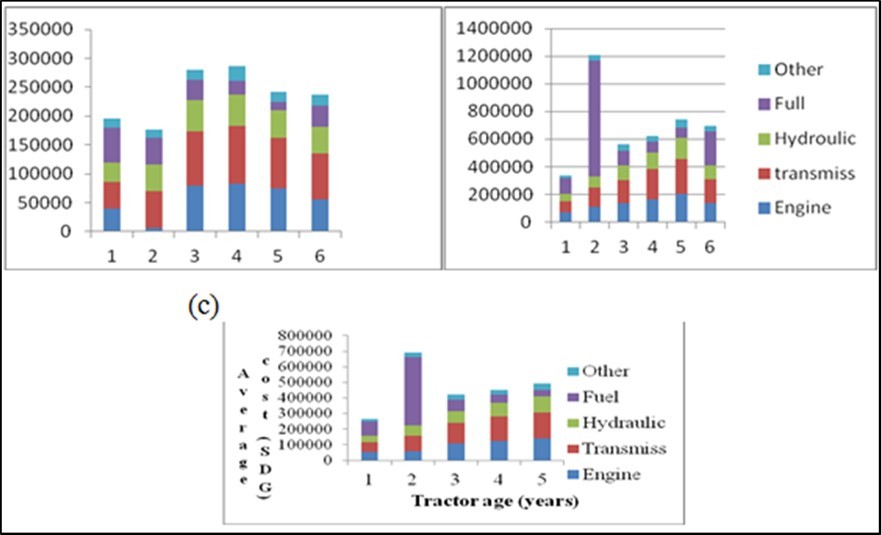

    Figure 2. Distribution of repair and maintenance costs of agricultural tractor systems (a) 75 hp tractor (b) 150hp tractor (c) mean of two types
    Figure 2.

    Table 2a. Repair and Maintenance costs distribution for different tractor systems (A)150 hp tractor
    Age Engine Transmission Hydraulic Fuel Other
    1 66353 83532 49778 114960 19120
    2 109415 139647 83185 834564 38220
    3 138072 165570 102735 111855 44140
    4 165140 218095 120365 81675 34845
    5 204415 250514 154290 75000 57175
    Mean 136679 171471.6 102070.6 243610.8 38700

    Table2b. Repair and Maintenance costs distribution for different tractor systems (B)75 hp tractor
    1 39820 45465 34275 59706 17055
    2 5465 64270 45710 46320 14983
    3 78908 94745 53925 34270 18340
    4 81825 100677 53890 25098 25636
    5 75361 86410 48060 13755 17590
    Mean 56275.8 78313.4 47172 35829.8 18720.8

    Development of Repair and Maintenance Costs Prediction Models

    Regression analysis of the data was carried out to present the relation between the mean accumulated R&M cost as percent of purchase price and the mean accumulated hours of use of the two tractor types, on the models of linear, polynomial, logarithmic, power and exponential with correlation coefficient (Table 2). The value of correlation coefficient among the presented models was related to polynomial model with R2 = 0.86 and the highest value of correlation was for power model with R2 = 0.93 which is very close to the previous studies. In the most published studies in this field, power models were found easy in calculations and gave better cost predictions than the other models. Therefore, the small difference between the correlation coefficients of polynomial and power models and using of power model by other researchers, in the present study, power model was suggested as suitable form for repair and maintenance cost estimation. The power relations of accumulated R and M costs with accumulated hours of use and tractor age in years of study for the two tractor type and the average of the two types are given in Table 3 and Table 4, The average correlation coefficient was very high (R2 = 0.93) indicating that the tractor age and accumulated hours of use could adequately explain variations in R&M costs.

    Table 3. Regression analysis of the relation between the mean accumulated R&M cost as percent of purchase price and mean accumulated hours of use
    Model Equation R square
    Linear Y= 0.0003x+22.181 0.732
    Logarithmic Y=23.598Ln (x)- 209.025 0.862
    Polynomial Y=-E-091.568x2+0.001x+7.04 0.859
    Exponential Y=20.017e7.467E-6x 0.617
    Power Y=0.028x0.662 0.927

    Table 4. The power relation of accumulated R&M cost with accumulated hours of use of the two tractors
    Tractor type Power model R square F
    Tractor 75Hp Y= 0.011x0.763 0.994 501.813**
    Tractor 150Hp Y= 0.019x0.677 0.994 466.297**
    Mean Y=0.028x0.662 0.927 101.534**

    Figure 3, Figure 4, Figure 5 were predicted low accumulated R & M costs of the early stage tractor life, and then costs increased gradually with increasing age and accumulated hours of use in 75hp tractor type. The distribution of the accumulated repair and maintenance cost of different tractor system was increased gradually from fuel, transmission, engine hydraulic and other.

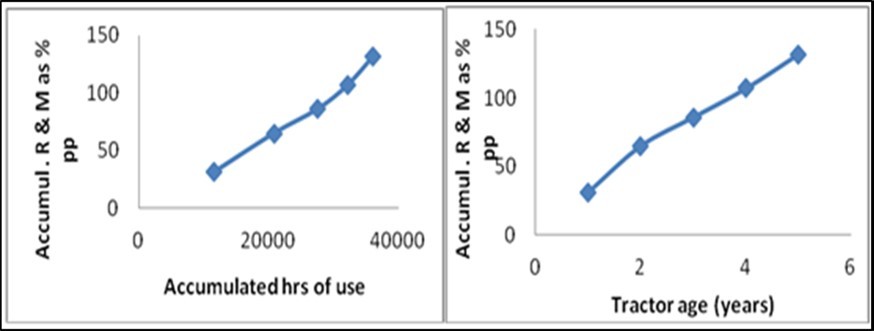

    Figure 3a. Accumulated repair and maintenance costs as percent of purchase price as affected by hours of use and age (year) for the75Hp tractor
    Figure 3a.

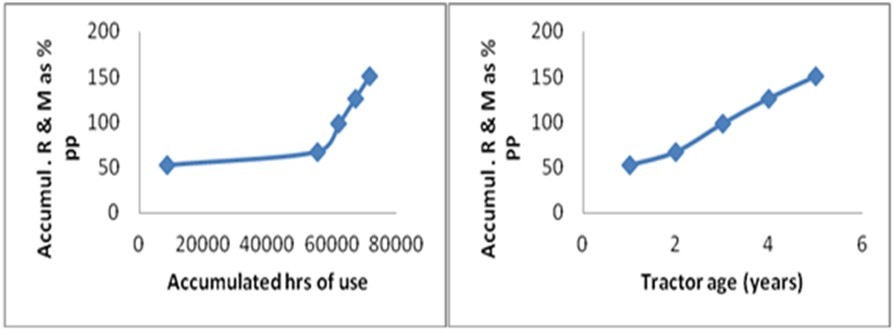

    Figure 3b. Accumulated repair and maintenance costs as percent of purchase price as affected by hours of use and age (year) for the150 Hp tractor.
    Figure 3b.

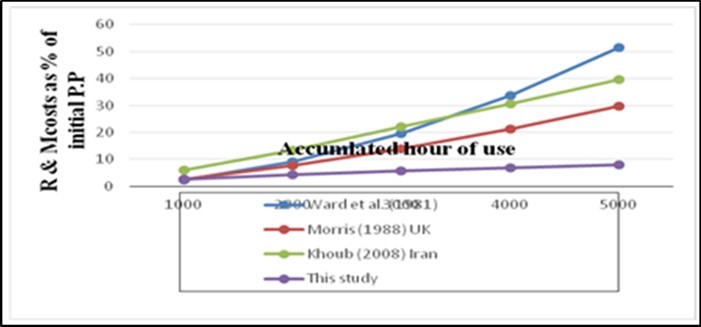

    Figure 4. Comparison of the present study prediction models with other models in world
    Figure 4.

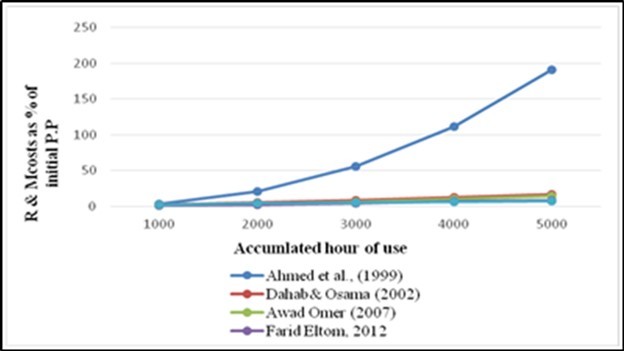

    Figure 5. Comparison of the present study prediction models with other models in Sudan
    Figure 5.

    Comparison of the Present Study Prediction Models with Other Models in the World

    The model of the average accumulated repair and maintenance costs predicted in this study was compared to the other similar models from USA, UK, and Ireland as shown in Table 5. It was clear that the present derived model accounted for relatively lower values of accumulated repair and maintenance costs compared to the world mentioned models. These variations may be attributed to the differences in spare parts prices between Sudan and the industrial countries, or may be due to variations in soil type, climate, preventive maintenance programmer applied and operation conditions. This lower value of repair and maintenance costs may be also due to the procurement and usage of spurious and non-genuine spare parts, variations in tractors technical specifications and lower labor charges for repairing and maintaining tractors in Sudan compared to the industrial world countries.

    Table 5. The power relation of accumulated R&M cost with accumulated age (years) of the two tractors
    Tractor type Power model R square F
    Tractor 75Hp Y= 14.14x1.14 0.994 465.008**
    Tractor 150Hp Y= 10.689x1.412 0.944 50.601**
    Mean Y=12.294x1.276 0.952 158.781**

    Comparison of the Present Predictions Model with Other Models Developed in Sudan

    When the predicted model in this study is compared to the other models from Sudan as shown in Table 6 it was observed that this model accounted for lower (1999) for all levels of accumulated hours of use, but after 2010 accumulated hours of use the rate of increase in accumulated repair and maintenance costs was gradual in this study while was very sharp16 model. This may be attributed to differences in spare parts, oils and lubricants prices within the country also may be due to variations in repair rates, frequent breakdowns, labor charges for repairing and maintaining tractors and operators and mechanics skills. Table 7

    Table 6. Comparison between the present study estimates of repair and maintenance costs as percentage of initial purchase price with other estimates from world
    Source Model Repair and maintenance costs as % of
    initial purchase price
    1000 2000 3000 4000 5000
    Ward et al. (1981) y = (4.82x1.9).10-6 2.4 9 19.5 33.6 51.4
    Morris (1988) UK y = (9.96x1.48).10-5 2.7 7.7 13.9 21.3 29.7
    Khoub (2008) Iran y = (0.002x1.162) 6.1 13.3 22 30.7 39.7
    This study Y=0.028x0.662 2.71 4.29 5.61 6.78 7.87

    y = Accumulated repair and maintenance costs as % of initial purchase price. x = Accumulated hours of use.
    Table 7. A comparison between this study estimates of repair and maintenance costs as percentage of initial purchase price with other estimates from Sudan
    Source Model Repair and maintenance costs as % of initial purchase price
    1000 2000 3000 4000 5000
    Ahmed etal., (1999) y = (2.53x2.4).10-7 4 21.2 56 111.7 190.8
    Dahab&Osama (2002) y = (4.0x1.25).10-4 2.3 5.4 8.9 12.7 16.8
    Awad Omer (2007) y = (2.0x1.59).10-5 1.2 3.5 6.8 10.7 15.2
    Farid Eltom, (2012) y = (1.7x1.29).10-4 1.3 3 5.2 7.5 9
    This study Y=0.028x0.662 2.71 4.29 5.61 6.78 7.87

    y = Accumulated repair and maintenance costs as % of initial purchase price

    When the model of this study was compared to Dahab and Osama (2002)15 model for repair and maintenance costs, it was clear that the estimates of the present model accounted for lower values than15 up to 2011 accumulated hours of use, after which this model accounted for higher values. This may be attributed to variations in tractors specifications, ages and makes.

    The comparison between this model17 prediction showed that the present model accounted for higher values of repair and maintenance costs 17 for all levels. This may be due to conditions of work, operators and mechanics skills, maintenance regime followed and labor charges for repairing and maintaining of tractors. The difference may also be attributed to differences in tractors technical specifications and cost computations methodology, however when the model of this study was compared18, it was clear that the estimates of the present model accounted for larger values until 2025 accumulated hours of use, after which this model accounted for lower value. This may be attributed to variations in tractors specifications, condition of work and skills of mechanics and operators.

    Conclusions

    The following conclusion may be drawn from the present study

    1. The relationship between accumulated repair and maintenance costs as percentage of the initial purchase price of the tractor and accumulated hours of use and age in years for the two tractors in Dongla area could better be described by the power function equation.

    2. The accumulated repair and maintenance costs increase with tractor age and hours of use.

    3. The predicted models for repair and maintenance costs of tractors in Sudan were lower than those of other countries; therefore, each area or country develops its own models of R&M costs to its operational and field conditions.

    References

    1.Bohm M. (1993) Breakdowns in agricultural tractors. , Agricultural Engineers 48(3), 79-83.
    2.Singh G. (2006) Estimation of a mechanization index and its impact on production and economic factors; A case study in India. , Biosystems Engineering 93(1), 99-106.
    3.Beppler D, Hummeida M. (1985) Repair costs of agricultural machinery in developing countries. ASAE paper No. 85-1026, St , Josph, Michigan, U.S.A, PP: 18.
    4.Hunt D. (1995) . Farm power and Machinery Management 9th ed. Iowa State University 50014, USA .
    5.O M Awad. University of Khartoum (2007) Repair and Maintenance Costs Estimation as Affected by Hours of Use and Age of Agricultural Tractor in New Halfa Area – Sudan. Unpublished M.Sc. thesis, Faculty of Agriculture. , Sudan
    6.Adekoya L, P A Otono. (1990) Repair and maintenance costs of agricultural tractors in Nigeria. Tropical agriculture. , (Trinidad) 67(2), 119-122.
    7.J A Gliem, K M Persinger, T G Carpenter, R G Holmes. (1989) A comparison of ASAE estimated tractor and combine repair and maintenance costs to actual repair and maintenance costs of selected farms. ASAE paper No. 89-1024. St , Josph, Michigan, U.S.A .
    8.C A Rotz. (1987) A standard model for repair costs of Agricultural machinery. , Trans. of ASAE 30(1), 3-9.
    9.S M Ward, P B McNulty, M B Cunney. (1985) Repair costs of two- wheeled drive and four- wheeled drive tractors. , Trans. of the ASAE 28(4), 1074-1076.
    10.Mpanduji S, A G Wendi, O H Dihenga, E L Lazaro. (2001) Investigation on tractor repair costs under Tanzanian conditions. , Agricultural Mechanization in Asia, Africa and Latin America 32(4), 71-75.
    11.bakht Khoub, G M Ahmedi, Alram H, A, Karimi M. (2008) Repair and maintenance cost models for MF285 tractors; case study in central region of Iran. , American-Eurasian J. Agric. and Environ. Sci 4(1), 76-80.
    12.Suhaibani S, Wahby M. (1995) Repair and maintenance costs model for tractors in Saudi Arabia. , Emirates. Journal of Agric. Sci 7, 193-208.
    13. (1987) FMO, Fundamentals of Machine operation. Preventive maintenance. Deere and company. Moline, Illinois, John Deere service publications. Dept. F., John Deere Road, Moline, Illinois, USA. 61256.
    14. (1995) FAO, Food and Agricultural Organization. Agricultural mechanization policy and strategy formulation. Sudan. Technical Report, TCP/SU/4451 , Rome, Italy 2, 5-22.
    15.M H Dahab, H A Osama. (2002) Development of mathematical models for estimation of tractors R&M costs in the main irrigated schemes of the Sudan. , University of Khartoum Journal of Agricultural Sciences 10(2), 251-256.
    16.Ahmed M H, Saeed A B, Ahmed A H, Haffar I. (1999) Tractor repair and maintenance costs in sudan II : A comparative study among major agricultural schemes. , Agricultural Mechanization in Asia, Africa and Latin America 30(2), 19-22.
    17.F M Rahama. University of Khartoum. Faculty of Agriculture, Sudan (1999) Tractor repair and maintenance costs variability and predictability. Unpublished M.Sc. Thesis.
    18.F E Abdallah. Faculty of Agriculture, University of Khartoum (2012) Estimation of repair and maintenance cost of a tractor base on HP and working hours. Unpublished M.Sc. thesis. , Sudan
