Acquired Abnormalities of Plasma Von Willebrand Factor Related Parameters and ADAMTS13 Autoantibodies in Aggressive Haematological Malignancies.

Haemostatic abnormalities in malignancies are well recognized but the understanding on the pathogenesis and characterization of von Willebrand factor (vWF) system in malignant disorders are still growing.

Both lymphoproliferative and myeloproliferative disorders at a lesser degree has been associated with imbalance in the vWF system. The presence of anti vWF autoantibodies result in acquired von Willibrand disease (vWD) whose clinical manifestations are related to bleeding tendencies.¹ Despite the high prevalence of thrombocytopenia, coagulopathy and acquired vWD, haematological malignancies still ranked among the neoplasm most associated with venous thromboembolism (VTE). In a population-based case-control study, patients with haematologic malignancies in fact had the highest risk of VTE (odds ratio ^OR = 28.0; 95% CI, 4.0 to 199.7), followed by lung and gastrointestinal cancers.²

Studies on vWF system in non-haematological neoplasm showed elevated levels of vWF:Ag and vWF:Rcof as well as reduced plasma ADAMTS13 protein and activities in advanced stage tumors^{3, 4}. Severe plasma ADAMTS13 deficiency is associated with thrombotic microangiopathyan observation that first came to light in thrombotic thrombocytopenic purpura (TTP).⁵TTP results from deficiency of ADAMTS13, a metalloproteinase responsible in cleaving large vWF multimers which was intiated by inhibitory anti-ADAMTS13 antibody. It was subsequently known that these antibodies were not specific to TTP, but was also identified in low titer in non-TTP autoimmune disorders such as in systemic lupus erythematosus (SLE) and antiphospholipid syndromes (APS) without clinical TTP.⁶ The prevalence of anti-ADAMTS13 antibody in malignant conditions remained to be known.

Hence this study was carried out to investigate the changes in vWF-related parameters in aggressive haematological malignancies, for example acute leukaemias and clinically aggressive non Hodgkin lymphomas. Abnormalities in the von Willebrand factor system may partially explain its pro-thrombotic state similar to those shown in studies on solid tumors. Another aim was to identify the prevalence of anti-ADAMTS13 antibody and its association with ADAMTS13 protein in haematological malignancies.

Ten mls of blood was collected from consented subject in sodium citrate and EDTA anti coagulant containers (for blood counts only). Patients’ biodata and clinical information were recorded. The following laboratory investigations were performed; full blood count and ABO blood grouping, prothrombine (PT) and activated partial thromboplastin time (aPTT), factor VIII assay, von Willebrand factor antigen (vWF:Ag), vWF activity, collagen binding assay (vWF:CBA), ADAMTS13 protein assayandADAMTS13 auto-antibody detection assay.

All laboratory tests were conformed to the standard operating procedure for the haemostatic tests in the Coagulation section, Haematology Laboratory, USM. All the procedures were adhered to the Clinical and Laboratory Standards Institute (CLSI) guidelines for coagulation tests. Full blood counts were performed on Sysmex XE 2100 Hematology analyser whereas PT and aPTT were carried out on coagulation analyser, STA Compact using Diagnostica Stago reagents.

For Factor VIII assay, the test was done on STA Compact coagulation analyser using factor VIII deficient plasma and reagents (produced by Diagnostica Stago, France). Measurement of vWF:Ag assay was done by automated latex enhanced immunoassay for quantitative determination using the reagents from Diagnostica Stago. For the vWF activity assay, the test was performed using Hemosil TM reagents on ACL 9000 coagulation analyser (produced by Instrumentation Laboratory, USA and Italy). The test for CBA:vWF was based on Enzyme Linked Immunosorbent assay (ELISA) method using TECHNOZYM reagents (produced by Technoclone GmbH, Vienna Austria). All tests were carried out according to the manufacturer’s instructions.

ADAMTS13 antigen assay and autoantibody detection were done according to manufacturer’s instruction, using IMUBIND ADAMTS13 ELISA (product no, 813) and ADAMTS13 Autoantibody ELISA (product n. 814) respectively both from American diagnostic, West Avenue Stamford.

The normal ranges for the following tests were available from the established local laboratory reference ranges from healthy volunteers (Hb; Male: 12 – 16.5g/dl and female: 9.8 – 13.8 g/dl, WBC 4.3–10.8x10⁹/L; Plt 150-400x10⁹/L; PT 12.61-15.72s; aPTT 30-45.8s; FVIII assay 50-190%; vWF:Ag 50-160%; vWF activity 40-170%; vWF:CBA 60-130). For ADAMTS13 related tests, the manufacturer recommended ranges were used (ADAMTS13 protein 630-850ng/mL; ADAMTS13 autoantibody cutoff value at 9.6 AU/mL. The autoantibody is expressed in Arbitrary Units/mL which is equal to to 1 ug/mL of affinity purified human anti-ADAMTS 13 IgG). The manufacturer recommended ranges were verified using healthy volunteers (n=20). The detection limit of the analytical method for ADAMTS13 related parameters was not given by manufacturer and not tested in this study.

Data were analyzed using IBM SPSS (Statistical Package for Social Sciences) version 20. Normality tests were performed to determine the choice of statistical tests. For non parametric tests, the results were expressed as median (Interquartile range) and differences between two groups were analysed using Mann Whitney test.

A total of 60 Malay subjects were included in this study. The median age of these subjects was 42.5 (IQR: 23.25-57.5). There were 34(56.7%) male subjects and the rest were female. The types of haematological malignancies and their proportions are shown in Figure 1 below. Diffuse large B cell lymphoma consisted the most common pathology, 38.3% of all cases. These cases were then grouped either into acute leukaemia; 34 (56.7%) or lymphomas 26 (43.3%).

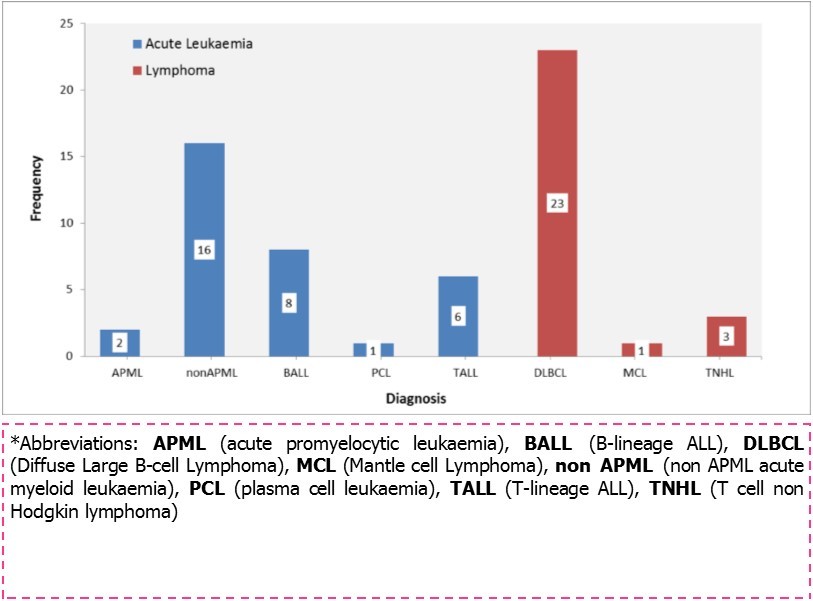

Figure 1.Primary haematological neoplasm in the studied subjects.

vWF antigen and acitivity were found to be predominantly elevated in all pathologies except in T-ALL. vWF:CBA was also found to be elevated in 88% of studied samples and this trend is consistently seen across all pathologies. ADAMTS13 antibody was found in 63.3% and reduced plasma ADAMTS13 protein was seen in 76.7% of studied population. However there was no significant correlation between plasma ADAMTS13 protein and antibody levels as shown in the table 2 matrix. Plasma ADAMTS13 protein levels were re-tabulated into low and normal or elevated and compared to plasma ADAMTS13 antibody in a 2x2 table, yet no significant association was seen by Fisher Exact test (p=0.597). There were four subjects with undetectable ADAMTS13 protein; one each for AML with t(15,17) translocation, AML M5b, AML M5a, and relapse DLBCL, but only one patient with APML had the antibody.

There was also no significant correlations between either ADAMTS protein or antibody with vWF antigen, its acitivity or vWF:CBA.

Subsequently, each parameter was then compared between acute leukaemia and lymphoma grouping using non-parametric, Mann-Whitney independent sample test. As expected, both the hemoglobin level and platelet count were significantly lower in the leukaemia group compared to the lymphoma group; 9g% (Intraquartile range; IQR: 8.18-10.08) versus 10.9g% (IQR: 9.48-11.63) (P=0.001) and 41.50 x 10⁹/L (IQR: 18.75-83.25) versus 309.50 x 10⁹/L (IQR: 189.75-444.75) (P<0.001)respectively. However the difference in total white cell count was not statistically significant; 14.50 x 10⁹/L (3.32-42.05) for leukaemia versus 8.70 x 10⁹/L (7.03-13.49) for lymphoma (p=0.596). The rest of the data are displayed in Table 1.

This study was done to investigate the abnormalities of vWF related parameters in aggressive haematological malignancies.

The elevated plasma vWF:Ag and activity as well as lowered plasma ADAMTS13 protein level seen in this study were in keeping to similar changes reported in earlier studies on solid tumors. (3-4) Oleksowicz showed that the level of plasma ADAMTS13 protease to be significantly lower in disseminated tumors compared to localized disease. Mean plasma FVIII:C, vWF:Ag and vWF:Rcof were all significantly elevated in patients with advanced stage solid tumors but not in localized disease when compared to normal patients.³ In a separate rather similar study involving Persian population, patients with both disseminated and localized tumors had significantly higher plasma vWF:Ag and lower ADAMTS13 protein compared to normal controls. The ADAMTS13 protein was shown to inversely correlated with vWF:Ag level (r=-0.4).⁴ It is possible that increased consumption of ADAMTS13 as demonstrated by high vWF antigen and activities in these cases have resulted in low ADAMTS13 protein.

We made use of manufacturer’s reference normal values and grouped the subjects into two groups; acute leukaemias or lymphoma to gain reasonable numbers for comparative analysis. Plasma cell leukaemia is not an acute leukaemia but was arbitrarily grouped together due to it’s dispersive and clinically aggressive nature. The leukaemias are naturally more disseminated compared to lymphomas and are expected based on previous results to have higher vWF:Ag, vWF activity, and vWF:CBA. On the contrary the result of this study was the exact reversed. The lymphomas showed significantly higher level of vWF activities compared to the leukaemias. Similar to the previous study we also demonstrated reduced ADAMTS13 protein level with 76.7% of all subjects having levels below the reference range. However the protease levels were not significantly different between the two groups.Unlike the previous study, there was no correlation between ADAMTS13 protein levels with vWF-related parameters.

The relatively higher vWF-related parameter levels among lymphomas compared to acute leukaemias provide a possible explanation to a marginal higher rate of venous thromboembolism seen among lymphomas compared to the latter (local data not included). It is difficult to compare the various rates derived from different population and different diagnostic criteria. Epidemiological data from the Californian Cancer Registry showed that the 2-years cumulative rates for venous thromboembolism (deep vein thrombosis or pulmonary embolism) was 3.6, 3.7 and 4.7 in acute myeloid leukaemia, acute lymphoblastic leukaemia and aggressive lymphomas respectively.^{7, 8}

Measures were taken to remove patients with sepsis from this study sample yet the depicted vWF-related parameters have similar profile to those shown during severe sepsis (elevated plasma vWF antigen, activity, vWF:CBA and reduced plasma ADAMTS13 protein) suggesting possible sharing of pathophysiological mechanism between neoplasm and inflammation.⁹ In addition to lowered ADAMTS13 synthesis in the liver, it was shown that sepsis lead to increase ADAMTS13 catabolic digestion by various cleaving protease among them, such as granulocyte elastase.⁵

In TTP, acquired anti-ADAMTS13 antibodies contribute to low ADAMTS13 protease. These antibodies has since also been identified in other diseases i.e sepsis, inflammatory diseases etc. We showed that there was a high prevalence with almost two third of patients with acute leukaemias and agressive lymphomas having detectable IgG anti-ADAMTS13 antibodies. However these detected IgG antibodies do not appear to contribute in lowering plasma ADAMTS13 protein level or affecting the vWF:CBA. None of the subjects were found to have clinical features of TTP in this study. There are several possibilities to explain these findings. We did not assess the sensitivity of the reagents and perform local validation studies. It is also possible that these are non-inhibitory antibodies targeting on less significant domains. Autoantibodies derived from plasma of patients with clinical TTP are most commonly directed against the cystein-rich spacer (cys-rich/spacer) domain of ADAMTS13. Activities against various other domains have also been registered at lesser frequencies.¹⁰ In a study evaluating patients with immunopathology other than TTP, low titers of IgG anti-ADAMTS13 antibodies (measured using ELISA assay) were found in 3.6% ,13% and 5% of healthy donors, patients with systemic lupus erythromatosis and antiphospholipid syndrome respectively. The ELISA technique was found to have more sensitive detection compared to the ADAMTS13 neutralizing inhibitor technique. In that study too there was no correlation between antibody levels and plasma ADAMTS13 protease activity.⁶

Presence of anti-ADAMTS13 IgG antibodies was common among the aggressive types of hematological malignancies (76.7%). The presence of these antibodies among AML patients was an unexpected finding. Though the presence of autoantibodies is rather explainable in lymphoid malignancies, in AML the mechanism of its development requires further exploration. The persistence positivity of auto IgG is more important to exclude false positive results due to transient circulating antibodies of unknown clinical significance. The titre level may also indicate the clinical significance of the antibody thus requiring further confirmation.

In the recent guideline on diagnosing TTP cases¹¹, severely reduced ADAMTS13 activity < 5% ± the presence of an inhibitor or IgG antibodies, confirms the diagnosis. However none of the cases in this study had typical clinical manifestation of TTP.

It would have been beneficial if this study also looked into vWF multimeric composition analysis and ADAMTS13 activities rather just the protein. Increased proteolysis of ADAMTS13 was associated with reduced high molecular weight vWF multimers. vWF multimer analysis may further characterise the vWF changes in aggressive haematological malignancies. In future, anti-ADAMTS13 antibodies detection should be combined with neutralizing technique to confirm their functional effect, as this test is more specific.

In conclusion, the vWF:Ag, vWF activity,and vWF:CBA were elevated with corresponding reduction in ADAMTS13 protein level in haematological malignancies similar to other solid tumors. The changes in the vWF related parameters were significantly more pronounced in aggressive lymphomas compared to acute leukaemias. These findings may partly explain the prevalence of higher VTE in lymphomas as compared to acute leukaemias. Presence of non-inhibitory anti-ADAMTS13 antibodies was common among hematological malignancies but they did not appear to affect ADAMTS13 protein levels or the vWF parameters.

This study was supported under Malaysian Fundamental Research Grant Scheme, FRGS 203/PPSP/6171116 and Mr Mohd Anuar Nordin for his technical assistance.

1. 1.Mohri H. (2006) Acquired von Willebrand syndrome: Features and management. , American Journal of Hematology 81(8), 616-23.
   PubMed·View article·Search at Google Scholar

1. 2.Blom J W, CJM Doggen, Osanto S, Rosendaal F R. (2005) Malignancies, Prothrombotic Mutations, and the Risk of Venous Thrombosis. , JAMA: The Journal of the American Medical Association.2005 February 9 293(6), 715-22.
   PubMed·View article·View article·Search at Google Scholar

1. 3.Oleksowicz L, Bhagwati N, DeLeon-Fernandez M. (1999) Deficient Activity of von Willebrand’s Factor-cleaving Protease in Patients with Disseminated Malignancies. , Cancer Research.1999May5 59(9), 2244-50.
   Search at Google Scholar

1. 4.Mannucci P, Karimi M, Mosalaei A, Canciani M, Peyvandi F. (2003) Patients with localized and disseminated tumors have reduced but measurable levels of ADAMTS-13 (von Willebrand factor cleaving protease). , Haematologica.2003April1 88(4), 454-8.
   Search at Google Scholar

1. 5.Ono T, Mimuro J, Madoiwa S, Soejima K, Kashiwakura Y et al. (2006) Severe secondary deficiency of von Willebrand factor–cleaving protease (ADAMTS13) in patients with sepsis-induced disseminated intravascular coagulation: its correlation with development of renal failure. , Blood.2006January15 107(2), 528-34.
   Search at Google Scholar

1. 6.Rieger M, Mannucci P M, JAK Hovinga, Herzog A, Gerstenbauer G et al. (2005) ADAMTS13 autoantibodies in patients with thrombotic microangiopathies and other immunomediated diseases. , Blood.2005August15 106(4), 1262-7.
   Search at Google Scholar

1. 7.Ku G H, White R H, Chew H K, Harvey D J, Zhou H et al. (2009) Venous thromboembolism in patients with acute leukemia: incidence, risk factors, and effect on survival. , Blood 113(17), 3911-7.
   Search at Google Scholar

1. 8.Conlon S, White R H, Chew H K, Wun T. (2009) Incidence of venous thromboembolism in patients with lymphoma. , Journal of Thrombosis and Haemostasis 5, (S2)-168.
   Search at Google Scholar

1. 9.Nguyen T C, Liu A, Liu L, Ball C, Choi H et al. (2007) Acquired ADAMTS-13 deficiency in pediatric patients with severe sepsis. , Haematologica.2007January1 92(1), 121-4.
   Search at Google Scholar

1. 10.Klaus C, Plaimauer B, Studt J-D, Dorner F, Lämmle B et al. (2004) Epitope mapping of ADAMTS13 autoantibodies in acquired thrombotic thrombocytopenic purpura. , Blood.2004June15 103(12), 4514-9.
   Search at Google Scholar

1. 11.Scully M, Hunt B, Benjamin S, Liesner R, Rose P et al. (2012) Guidelines on the diagnosis and management of thrombotic thrombocytopenic purpura and other thrombotic microangiopathies. , British Journal of Haematology 158, 323-335.
   Search at Google Scholar
