Research Article Open Access
  • Available online freely Peer Reviewed
  • Phytochemical Analysis and Thin Layer Chromatography Profiling of Crude Extracts from Senna Occidentalis(Leaves)

    Lawal A.M 1   Abdullahi R 1   Ibrahim M.S 2   Kurfi M.Y 3   Khalid A 4   Nuhu M 1

    1Department of Chemistry, Federal University Dutse, Jigawa State, P.M.B 7156

    2Department of Polymer and Textile Engineering, Ahmadu Bello University, Zaria, Nigeria

    3Department of Pure and Industrial Chemistry, Bayero University Kano

    4Science Department, Great Icon International School, Zaria


    Plants used for medicinal practices which were discovered since prehistoric stone ages are termed Medicinal plants, which are also referred to as medicinal herbs, since plants produces bioactive chemical compounds (phytochemicals), this research however, is concerned with the extraction using Soxhlet extraction technique, phytochemical screening using various test methods, which reveals the presence of anthraquinones (free anthraquinones and combined anthraquinones), carbohydrates, cardiac glycosides, glycosides, flavonoids, saponins, steroids/ terpenes, phenolic compounds and tannins, and absence of alkaloids for extracts of senna occidentalis and also, thin layer chromatography profiling which gives probable foundation for further structural elucidation amongst others. This research shows the presence of potent secondary metabolites present in the leaves of senna occidentalis (leaves).

    Author Contributions
    Received 22 Apr 2019; Accepted 13 May 2019; Published 29 May 2019;

    Academic Editor: Xiou Cao, Global Health Drug Discovery Institute (GHDDI), China.

    Checked for plagiarism: Yes

    Review by: Single-blind

    Copyright ©  2019 Lawal A.M, et al.

    Creative Commons License     This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

    Competing interests

    The authors have declared that no competing interests exist.


    Lawal A.M, Abdullahi R, Ibrahim M.S, Kurfi M.Y, Khalid A et al. (2019) Phytochemical Analysis and Thin Layer Chromatography Profiling of Crude Extracts from Senna Occidentalis(Leaves) . Journal of Biotechnology and Biomedical Science - 2(1):12-21.

    Download as RIS, BibTeX, Text (Include abstract )

    DOI 10.14302/issn.2576-6694.jbbs-19-2791


    A medicinal plant is any plant material be it seeds, root extracts or leaves extract that is used to cure or fight against infection or attempt to maintain health, which are to be administered for specific ailments which can either be in modern or traditional medicine, this definition of medicinal plant is also supported by Ahn, 1, 2. There are about 50,000 medicinal plants used across the world 3.It is documented by Kew (2016) that there are conservatively about 18,000 plant species that are use either in modern or traditional ways which are conceived to have medicinal properties which are part of the about 30,000 species documented.

    Medicinal plants provide various kinds of benefit which could either be economic, health or socio-cultural benefits as suggested by Schippmann et al., 3. However, development of plants or extracts and available expertise to prove that they have potential medicinal uses is blunted and weakened, upon which insufficient financing is a key player,1.

    Drug development researchers adopts ethno botany as a strategy to search for pharmacologically active substances in naturally occurring plants, using these strategies, they have discovered hundreds and thousands of useful compounds which can either be alkaloids, glycosides, polyphenols, or terpenes. Some of the drugs extracted from plants include aspirin, quinine, opium, etc.

    Bioactive Chemical Compounds (Phytochemicals)

    All plants produce chemical compounds which give them an evolutionary advantage, such as defense against herbivores or, in the example of salicylic acid, as a hormone in plant defenses, 4, 5. These phytochemicals have potential uses as drugs, and the content of known pharmacological activity of these substances in medicinal plants is the scientific basis for their use in modern medicine, if scientifically confirmed, 1.

    Modern knowledge of medicinal plants is being systematized in the Medicinal Plant Transcriptomics Database, which by 2011 provided a sequence reference for the transcriptome of some thirty species, 6. The major classes of pharmacologically active phytochemicals are described below, with examples of medicinal plants that contain them, 7.


    Alkaloids are bitter-tasting chemicals, very widespread in nature, and often toxic, found in many medicinal plants, 8. There are several classes with different modes of action as drugs, both recreational and pharmaceutical. Medicines of different classes include atropine, scopolamine, and hyoscyamine (all from nightshade), 9, 10.


    Anthraquinone glycosides are found in medicinal plants such as rhubarb, cascara, Aloe and Alexandrian senna, 9, 11, 12, 13. The cardiac glycosides are powerful drugs from medicinal plants including foxglove and lily of the valley. They include digoxin and digitoxin which support the beating of the heart, and act as diuretics, 5.


    Polyphenols of several classes are widespread in plants, having diverse roles in defenses against plant diseases and predators, 5. They include hormone-mimicking phytoestrogens and astringent tannins, 9, 14. Plants containing phytoestrogens have been administered for centuries for gynecological disorders, such as fertility, menstrual, and menopausal problems, 15, 16, 17, 18, 19.


    Terpenes and terpenoids of many kinds are found in a variety of medicinal plants, 18 and in resinous plants such as the conifers. They are strongly aromatic and serve to repel herbivores. Their scent makes them useful in essential oils, whether for perfumes such as rose and lavender, or for aromatherapy, 9, 20, 21. Some have medicinal uses: for example, thymol is an antiseptic and was once used as a vermifuge (anti-worm medicine), 21.

    Cassia Occidentalis

    S. occidentalis is an annual too short-lived perennial herb to small shrub with a pantropical distribution. It is reported as invasive throughout Oceania, and various countries in Asia and Africa. Within its native range S. occiden-alis is listed as invasive for Cuba by Oviedo Prieto et al. 22. The scientific name is Senna occidentalis with a common name as Coffee Senna.


    Domain: Eukaryota

    Kingdom: Plantae

    Phylum: Spermatophyta

    Subphylum: Angiospermae

    Class: Dicotyledonae

    Order: Fabales

    Family: Fabaceae

    Subfamily: Caesalpinioideae

    Genus: Senna

    Species: Senna Occidentalis


    The morphology of S. occidentalis as described by Parsons and Cuthbertson 23, closely matches that as described in other places in the world. It is a low growing, sparsely branching annual or short-lived perennial plant up to 0.5-2 m high and having a characteristic fetid odour. The stems are reddish purple, erect, 4-angled when young, becoming rounded with age. The plant has a robust primary root with several laterals. The leaves are pale green on reddish stalks; alternate, pinnate, with 3-5 (sometimes 6) pairs of opposite ovate to lanceolate-elliptic leaflets, 25-100 mm long, 20-30 mm wide, rounded at the base. A conspicuous, dark-coloured gland occurs at the base of the petiole (leaf stalk) but not on the stalks of the leaflets. The flowers are pale to bright yellow, 20-30 mm in diameter, in 2-6 flowered axils of the upper leaves; sepals are red veined; 5 petals per flower, the 2 anterior ones are smaller than the others; fertile stamens 6, the two basal ones longer than the rest, 4 infertile stamens are reduced to tiny petal-like staminodes. Further descriptions of the floral anatomy of S. occidentalis and nine other species of Cassia are given by Chhavi-Thakur and Thakur 24. The fruit is a dark brown, flattened, sickle-shaped pod with paler stripes along the edges when mature. Pods are 75-130 mm long, 8-10 mm wide, containing a single row of 25-35 seeds. The seeds are dark brown, flattened, hard, 5 mm long and 3 mm wide. Plate 1

    Plate 1. Close view of senna occidentalis in its natural habitat
    Plate 1.


    Phytochemical screening of the plant showed the presence of carbohydrates, saponins, sterols, flavonoids, resins, alkaloids, terpenes, anthraquinones, glycosides and balsam. Presence of these metabolites strongly concluded the great potential of the plant as a source of phytomedicines. As the flavonoids and resins are present, it might be responsible for its anti-inflammatory properties. Chinese folkloric medicine contains flavonoids which has anti-inflammatory effect on both acute and chronic inflammation, alkaloids for blood pressure decrease and nervous system balancing, Tannins for wound healing and terpenes with anti-viral properties, 25, 26, 27.

    Eudesmane sesquiterpenes have been reported to contain antibacterial properties. Saponins are believed to have antioxidant, anti-cancer, anti-inflammatory, and anti-viral properties. The anthraquinones, emodin and chrysophanone have been reported to possess wound healing properties. Other compounds reported in literature include, 1,8-dihydroxyl-2-methyl anthraquinone, 1,4,5-trihydroxy-3-methyl-7-methoxy anthraquinone, cassiaoccidentalin A, B and C, which are C-glycosides, achrosine, anthrones, apigenin, aurantiobtusin, campesterol, cassiollin, chryso-obtusin, chrysophanic acid, chrysarobin, chrysoeriol, essential oils, funiculosin, galactopyranosyl, helminthosporin, islandicin, kaempferol, lignoceric acid, linoleic acid, linolenic acid, mannitol, mannopyranosyl, matteucinol, obtusifolin, obtusin, oleic acid, physcion, quercetin, rhamnosides, rhein, rubrofusarin, sitosterols, and xanthorin 28, 29. Figure 1

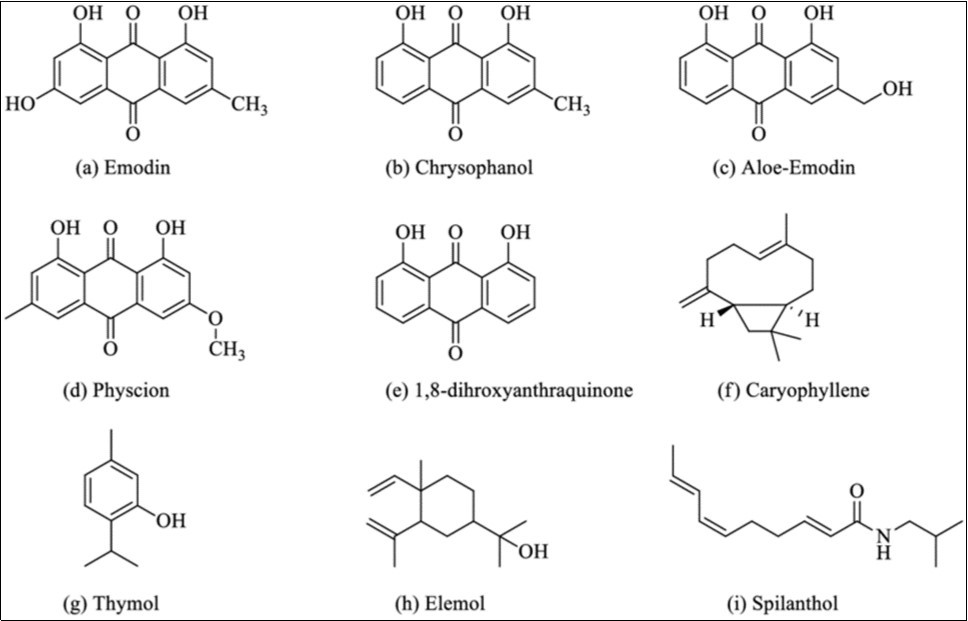

    Figure 1. Structures of some compounds isolated from Senna occidentalis
    Figure 1.


    The Senna Occidentalis plant leaves were collected from Federal University Dutse (F.U.D) Jigawa State, Nigeria on May 13th 2018. Below is the Table 1 for the coordinates using Global positioning system device (GARMIN GPS 76).

    Table 1. Coordinates of plants materials (leaves) collected
    Plant’s Name Coordinate Elevation (m) Accuracy (m)
    Senna occidentalis N 11o42.074’ E009o22.357’ 439.1 20.1

    The plant was authenticated by Mal. Namadi Sunusi at the herbarium unit in the Department of Plant Science, Ahmadu Bello University, Zaria, Nigeria. Where it was deposited and voucher numbers 01047 was assigned to Cassia occidentalis. The plant leaves were chopped into pieces using iron knife, oven dried at 80oC for one (1) hour, pulverised using mortar and pestle, and sieved using a 600 MICS size sieve and then stored in a non-absorptive nylon for subsequent use. The plant materials were extracted using a soxhlet extractor successively in n-hexane, diethyl ether, chloroform, ethyl acetate and methanol exhaustively for 12 hours; 1 hour; 8 hours; 10 hours; and 12 hours each for both plant materials until complete extraction. The solvents were removed and concentrated using a rotary evaporator and stored in a screw cap bottles at 0oC until usage then labelled. The extracts were subjected to various phytochemical tests to identify the constituent secondary metabolites using standard methods 30, 31 with some modifications. The metabolites tested for includes: Anthraquinones, Alkaloids, Carbohydrates, Cardiac glycosides, Flavonoids, Saponnins, Steroids, Tannins and Terpenes.

    Test for Steroids/Terpenes

    Liebermann-Buchard Test

    To each 0.5 g of sample in 20 mL test tube was added chloroform (1 mL) and also few drops of acetic anhydride were added followed by concentrated H2SO4. The mixture was mixed carefully and a blue colour that changed with time was observed in the resulting solution which indicated the presence of steroids/terpenes 32.

    Salkowski Test

    To each 0.5 g of sample in a 20 mL test tube chloroform (1 ml) was added and to it 1 mL of concentrated H2SO4 was added down the test tube to form two phases. Formation of yellow coloration was taken as that which indicates the presence of sterols 32.

    Test for Flavonoids

    Shinoda Test

    To 1 g of the sample in 20 mL test tube was added methanol (5 mL). Also, to the sample was added three pieces of magnesium chips followed by few drops of concentrated HCl. A purple colour was observed which indicated the presence of flavonoids 31.

    Sulfuric Acid Test

    Little quantity of the extract was dissolved in 1 mL concentrated sulfuric acid and a colour change was observed which indicated the presence of flavonoids 32.

    Lead Acetate Test

    A small quantity of the extract was dissolved in water and filtered. Few drops of 10 % lead acetate were added to 5 mL of the filtrate. A buff colored precipitate indicated the presence of flavonoids 33.

    Sodium Hydroxide Test

    To 1 g sample in 100 mL beaker was added 10% aqueous sodium hydroxide solution (5 mL) and filtered to give yellow color, a change in color from yellow to colorless on addition of dilute HCl was observed which indicated the presence of flavonoids 34.

    Test for Alkaloids

    To the sample (0.5 g) in 20 mL test tube was added 5ml of 1% aqueous hydrochloric acid then stirred on a water bath and filtered. The filtrate (3 mL) was divided into three. To the first portion, three drops of freshly prepared Dragendoff’s reagent was added and an orange to brownish precipitate was observed. To the second portion 1 drop of Mayer’s reagent was added and yellowish color precipitate was observed. To the third portion 1 drop of Wagner’s reagent was added to give a reddish- brown precipitate which indicated the presence of alkaloids 32.

    Test for Phenolic Compounds and Tannins (Ferric Chloride Test)

    To 1 g of sample in 20 mL test tube was added 5 mL of distilled water and boiled and the mixture was filtered. Two drops of ferric chloride were added to the filtrate, formation of green precipitate was observed which indicated the presence of tannins 35.

    Test for Anthraquinones (Free Anthraquinones)

    Small quantity of the extract was shaken with 10 mL of benzene, the content was filtered, and 5ml of 10% ammonia solution was added to the filtrate then, the mixture was shaken. No color change was observed in the ammoniacal layer (Lower phase) which indicated the presence of free anthraquinones 34.

    Test for Saponins (Frothing Test)

    About 0.1g of the extract was shaken with water in a test tube. Frothing was observed which persisted for 1 minute that indicated the presence of Saponins 32.

    Test for Glycosides (Ferric Chloride Test)

    To small quantity of the extract 5ml of conc. H2SO4 was added and boiled for 15 min. This was then cooled and neutralized with 20% KOH. The solution was divided into two portions. Three drops of ferric chloride solution were added to one of the portions, and a green to black precipitate indicated phenolic glycone as a result of hydrolysis of glycoside 32.

    Test for Cardiac Glycoside (Kella-Killani Test)

    To each sample (0.5 g) in 20 mL test tube was added glacial acetic acid (5 mL) containing traces of ferric chloride. The test tube was held at an angle of 45o and concentrated sulphuric acid (1 mL) was added carefully down the side. A purple ring color at the interface was observed which indicated the presence of cardiac glycoside.

    Thin Layer Chromatography Profiling of the Extracts

    Thin layer chromatography was carried out on TLC plastic sheet of silica gel pre-coated with layer thickness of 0.2 mm using various solvent system comprising hexane/ethyl acetate mixtures (99, 98, 97, 96, 95, 93, 91, 90, %).

    Spotting and Development

    Spots were applied manually using capillary tube; plates were dried using air blower and developed at room temperature using Shandon chromate tank.

    Detection of Spots

    Spots on TLC plates were visualized using destructive method by spraying with 10% sulphuric acid in methanol, followed by heating at 110oC for 1-2 min.

    Results and Discussion

    Results of extraction, phytochemical screening, free radical scavenging and TLC profiling of the leaves of Senna Occidentalis. Table 2

    Table 2. Result of Extraction
    1 Senna Occidentalis/Leaves 400 Hexane 33.20
          Diethyl Ether 3.00
          Chloroform 12.40
          Ethyl Acetate 3.80
          Methanol 24.80


    From the above results, the weight of the crude extracts was found to be 33.20, 3.00, 12.40, 3.80, 24.80, (g) for hexane, diethyl ether, chloroform, ethyl acetate and methanol extract of sennaoccidentalis leaves with hexane having the highest mass using the aforementioned successive soxhlet extraction technique.

    The preliminary phytochemical screening reveals the presence of anthraquinones (free anthraquinones and combined anthraquinones), carbohydrates, cardiac glycosides, glycosides, flavonoids, saponnins, steroids/ terpenes, phenolic compounds and tannins, and absence of alkaloids for various extracts of sennaoccidentalis using various tests. (Table 3). This may account for their various uses in ethno-botanical and traditional medicines.

    Table 3. Preliminary phytochemical analysis of leaves extract obtained from S. occidentalis
    Metabolites Test Used Leaves Extract
        N-HX DE CF EA ME
    Anthraquinones Free anthraquinones Combined anthraquinones General test   - - - + +
    - - - +
    Alkaloids Dragendoff’s test - - - - -
    Mayer’s test - - - - -
    Wagner’s test - - - - -
    Carbohydrates Molisch’s test + - - - +
    Cardiac glycosides Kella-Killani test + + + - -
    Glycosides FeCl3 test - - - - +
    Flavonoids Shinoda test - - - - +
    NaOH test - - -   +
    Sulphuric acid test - - - - +
    Lead acetate test - - - - +
    Saponnins Frothing test - - - + +
    Steroids/ Terpenes Liebermann-Buchard test + + + + +
    Salkowski test + + + + +
    Phenolic compounds and tannins FeCl3 test - - - - +

    n-HX= n-Hexane, DE= Diethyl Ether, CF= Chloroform, EA= Ethyl Acetate, ME= Methanol

    Also, the TLC profiling was carried to know the solvent system that could possibly be used in the further isolation of the crude extract from the plants. Although, an ascending chromatography it gives an idea about the possible compounds that can be present in the extract from the number of spots (Table 4), and also, the possible solvent mixture that could be used for further isolation.

    Table 4. Result of Thin Layer Chromatography (TLC) Profiling using solvent system comprising hexane/ethyl acetate mixtures (99, 98, 97, 96, 95, 93, 91, 90, %)
    1 Hexane Senna Occidentalis 1,2 & 3 Purple, Yellow & Dark green
    2 Diethyl ether Senna Occidentalis 1 & 2 Orange & Yellow
    3 Chloroform Senna Occidentalis 1,2,3 & 4 Green, Light blue, Yellow & Black
    4 Ethyl acetate Senna Occidentalis 1,2 & 3 Black, Yellow & Dark green
    5 Methanol Senna Occidentalis 1,2,3 & 4 Purple, Yellow, Dark red & Blue


    From the above premises it can be concluded that, after the extraction of the crude extracts, the leaves of sennaoccidentalis were found to be rich in phytochemicals. Also from relevant literatures, it clearly indicates that, the leaves extracts of Senna occidentalis houses some pure compounds whose structures can be further elucidated and be used for drug design. This means that the leaves would be useful as an antioxidant and free radical scavenging agent and also aids in the treatment of many diseases mediated by reactive oxygen species amongst others.


    From the results obtained in this research, the following recommendations were made;

    It is recommended that further research should be carried out to elucidate the structures of bioactive compounds responsible for and also, mechanism of action through which the extract exert the antipyretic and antioxidant activity.

    Also, government agencies should educate the populace on the use of medicinal plants which serves as a reservoir for many antioxidants either as vegetables, tea, dietary supplements, etc.
