23:2 Diyne PC [DC_8,9PC] (1,2-bis(10,12-tricosadiynoyl)-sn-glycero-3-phosphocholine) and DSPE-PEG-2000(1,2-distearoyl-sn-glycero-3-phosphoethanolamine - N[methoxy(polyethyleneglycol)-2000] (ammonium salt)) suspended in chloroform were purchased from Avanti Polar Lipids (Alabaster, AL). Cholesterol and Riboflavin-5-phosphate sodium salt dihydrate were procured from Sigma Aldrich. Invitrogen™ RNase-free PBS - Phosphate-Buffered Saline (PBS) pH 7.4 was purchased from Fisher Scientific. Invitrogen™ e-Bioscience™ Annexin V Apoptosis Detection Kit PE and 7-amino-actinomycin D (7-AAD) components were purchased from Fisher Scientific.

Lipids and cholesterol were suspended in chloroform. The lipid mixtures were dried under ultra-pure nitrogen environment to obtain a thin film in the bottom of the tubes that were hydrated with PBS buffer (10X) of pH 7.4. For the encapsulated liposomes, riboflavin was suspended the PBS buffer prior to hydration of dried films. On re-hydration, liposomes were uniformly sized by extruding through polycarbonate membrane of pore size 100 nm. Liposomes were prepared using thin film hydration technique and sized as described in prior literature 3839404142. Details of the formulations are given in Table 1. The unencapsulated riboflavin was removed by ultracentrifugation followed by rinsing with fresh batch of PBS buffer. The total liposome to riboflavin ratio was maintained at 20:1 by weight ratio in this study.

The size, polydispersity index (PDI) and surface charge of both encapsulated and unencapsulated liposomes were analyzed using a Malvern Instruments Zetasizer by dynamic light scattering method at 25 °C and at 173° backscatter angle with 120 s equilibration time.

10 µl of the liposome samples were placed in T-zero Hermetic pan. The pans were sealed with a sample press prior to placing them on a TA Instruments Q-2000 DSC. The DSC scans were performed in an inert nitrogen environment maintained at 40 mL/min in the temperature range of 25 to 65oC at a heating rate of10 oC/min. The stability study for these formulations was conducted using a Differential Scanning Calorimetry (DSC) for a four-week time frame. DSC measures the specific heat capacity as a function of temperature. In this case lipids, on heating undergo a gel to fluid crystalline endothermic transition. These transitions are detected by the DSC and the main transition is a sharp intense peak that occurs at the melting point. The nature of the transition is affected in the presence of other molecules4344. Any changes in the enthalpy of transition is measured from the area under the peak given by:

.(i)

Where C_pis the heating capacity. The changes in enthalpy is an indicator of stability.

e-Bioscience™ Annexin V Apoptosis Detection PE and 7-AAD Kits for flow cytometry were used to measure early and late-stage apoptosis in human prostate cancer cells (DU- 145).Briefly, the cells were grown in cell culture media (DMEM) supplemented with 4.5 g of glucose, 10% fetal bovine serum (FBS) and 1% penicillin/streptomycin). The cells were grown in cell culture flasks to form adherent monolayers and were stored in a humidified incubator at 37 °C and 5% CO₂. The cells were washed with PBS, seeded at a density of 5000 cells/well in 24 well plates, and allowed to grow overnight. Next day, riboflavin encapsulated liposomes at 200 µl volume were added to the cells. The cells were incubated overnight to ensure uptake of the liposomes. After 24 hr, the cells were treated with UV-light to cause photo-polymerization of DC_8,9PC lipids and subsequent activation of the riboflavin-encapsulated liposomes. The cells were then collected and washed with ice-cold phosphate buffered saline (PBS) followed by cells resuspension in 100 μl of 1X Annexin V binding buffer on an ice-cold bath. 5 µl of Annexin V was added to the 100 µl of cell suspension and incubated for 10-15 mins at room temperature. Next, the cells were washed with ice-cold PBS and resuspended in 200 µl of 1X binding buffer. Then, 5 µl of 7-AAD viability staining solution was added to the cell suspension. Finally, flow cytometry was used to detect the fluorescence of stained cells at excitation/emission maxima: Annexin V PE^®: 499/521 nm; 7-AAD^®: 535/617 nm with BD FACSAria IIu High-Speed Cell Sorter flow cytometer from BD Biosciences (Becton- Dickinson, San Jose, CA, USA).The data were viewed and analyzed using FlowJo v10.2 software from FlowJo LLC (Ashland, OR, USA).

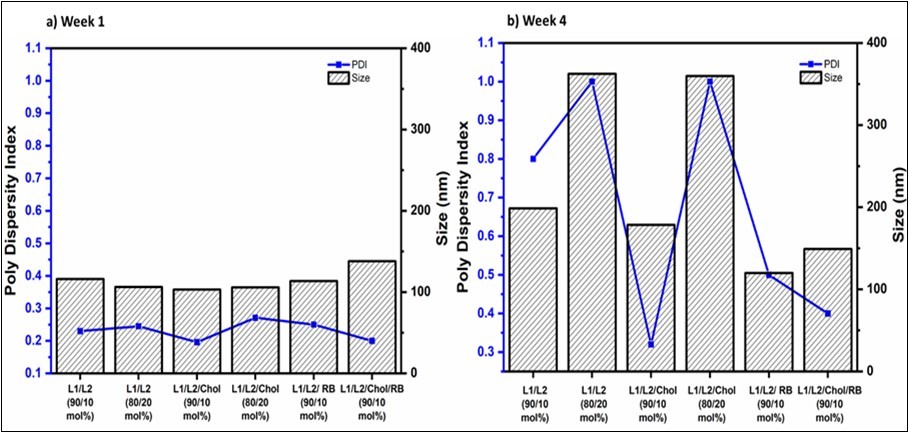

The size and surface charge of the liposomal formulations were recorded for four weeks. It was observed that the measured zeta potential of the formulations were in the range of - 0.347±0.0075 mV or near neutral consistent to the zwitterionic nature of the DSPE lipids 45. The near constant zeta potential also confirms the absence of un-associated and excess riboflavin in the liposomal solution. The average hydrodynamic diameters and polydispersity indices (PDI) of the formulations measured over a period of weeks are summarized in Figure 1. The size measurements studies conducted in Week 1 indicated that all the formulations were within the acceptable size range of 70-140±5 nm at a PDI of less than 0.25±0.0005 mV indicating the uniformity of the extruded liposomes. However, after week 4, most of the formulations agglomerated with a significant increase in the measured average diameters. The presence of cholesterol did not affect the size or PDI of the formulations. It is also observed that with an increase in DSPE-PEG 2000 by 10 mol% the aggregation and dispersity of the particles also increased with time. It is implied that the presence of cholesterol has minimal influence on the physical stability of the liposomes with regards to the controlling the size and possibly their aggregation.

In this work, we have focussed on the stability study through thermal characterization (DSC) technique. DSC was used to study the phase behaviour and changes in DC_8,9PC and DSPE lipid in the presence of PEG and cholesterol. The resultant changes in the melting temperature and shape of the melting peak as summarized on Figure 2. The melting temperature represents the transition from gel to fluid phase of the lipid molecules represented on the x-axis, whereas the area under the melting peak corresponds to the calculated change in enthalpy, ΔH_C = ∫????_p ???????? of the lipid formulations summarized on Table 2. C_pis the specific heat capacity of the lipids plotted on the y-axis. In a lipid bilayer, the fluidity and the movement of the lipid molecules constitute the internal energy of the system. The fluidity of the bilayer is more as we get closer to the transition temperatures of the liposomes. This is demonstrated by the change in enthalpy. The change in enthalpy (ΔH) is represented as follows 46,

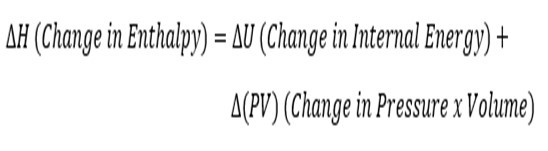

….(ii)

The internal energy represents various molecular interactions occurring within the system. Since the liposomal formulations were sealed in T-zero hermetic pan during the DSC studies, the change in pressure (P) and volume (V) is considered negligible. Therefore, the change in enthalpy depends mostly on the inter-molecular interactions such as van der Waals forces occurring between the lipid, PEG and encapsulated riboflavin and intramolecular polar bonds.

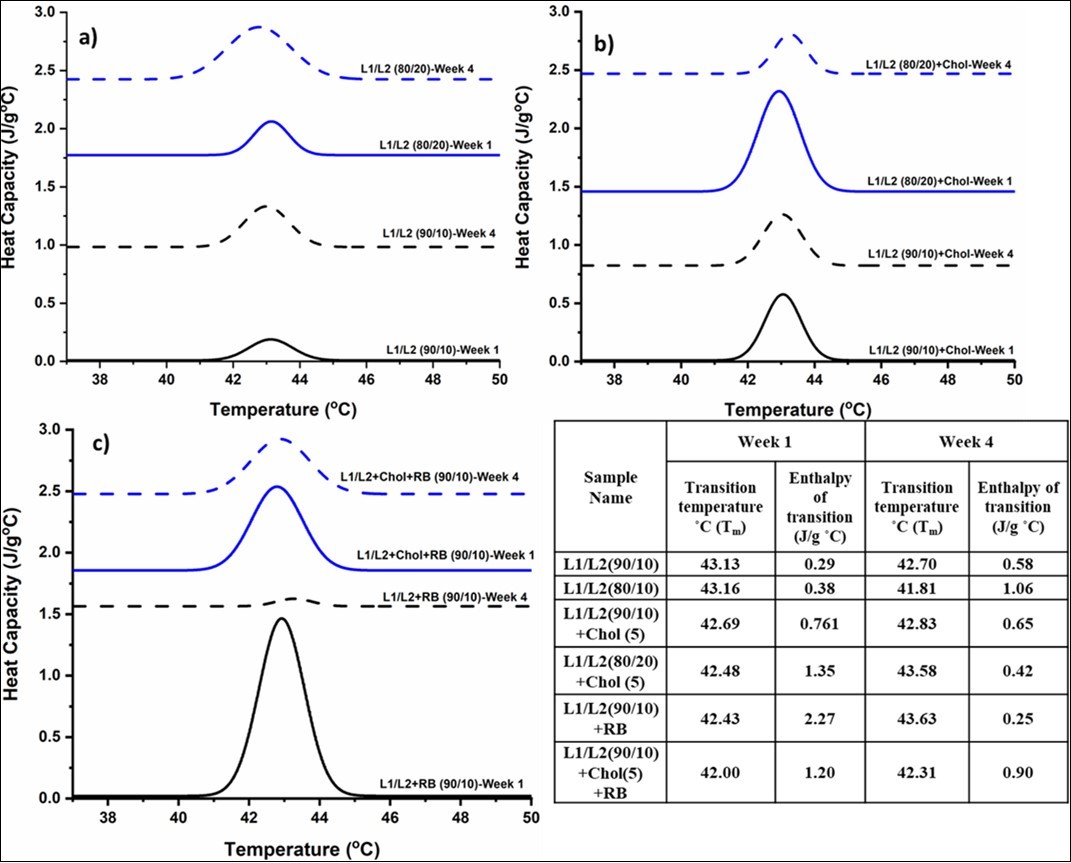

The melting temperatures of pure DC_8,9PC, DSPE-PEG , and cholesterol are reported as 45°C, 52°C and 150°C respectively. 474849. Figure 3a) represents the thermograms of the formulations DC_8,9PC liposomes containing 10 and 20 mol% of DSPE-PEG-2000 labelled as L1/L2 (90/10) and L1/L2 (80/20) by mol% respectively and measured at weeks 1 and 4. A slight decrease in the melting transition temperature of 0.43°C was observed for the formulation L1/L2 (90/10 mol%) over the four-week period. The associated enthalpy with the melting transition, which is also the indicator of the stability of the liposomal formulations was computed from the area under the melting peak and tabulated in Table 2. Despite the negligible shift in the melting temperature, the enthalpy of transition was found to be nearly doubled. With increased PEG from 10 to 20 mol% in the formulation L1/L2 (80/20 mol%), a significant shift towards a lower temperature from 43.16 °C to 41.81 °C denoted by blue lines on Figure 2a was observed. The temperature shift was accompanied a dramatic increase in the enthalpy by 178%. A discrepant observation in Figure 2b) thermograms was made in the presence cholesterol. 5 mol% of cholesterol was added to both L1/L2 at 90/10 and 80/20 formulations to study the effects of cholesterol on the stability of the formulations. L1/L2 (90/10) + 5 mol% cholesterol had imperceptible increase in transition temperature of 0.14°C and a decrease in enthalpy of 14.5% from week one to week four as observed in Figure 2b. However, L1/L2 (80/20) + 5 mol% showed a more prominent change in the temperature from 42. 48 °C to 43.58 °C and a significant decrease in enthalpy of 68.18% from week one to week 4. From Figure 2 a) and b), the L1/L2 (90/10) formulation demonstrated more consistent thermal behaviour with regards to change in enthalpy and melting temperature in the presence and absence of cholesterol observed in a period of four weeks. Figure 2c) compares the thermal stability of L1/L2 (90/10) formulations encapsulated with riboflavin in the presence and absence of cholesterol. A dramatic decrease in the enthalpy by 89% was noted by week 4 with L1/L2 (90/10) encapsulated formulations. However, the same formulations impregnated with 5 mol% cholesterol demonstrated a slight change in the enthalpy and melting temperature. DSC studies imply the role of cholesterol in acquiring thermal stability of the liposomal formulations.

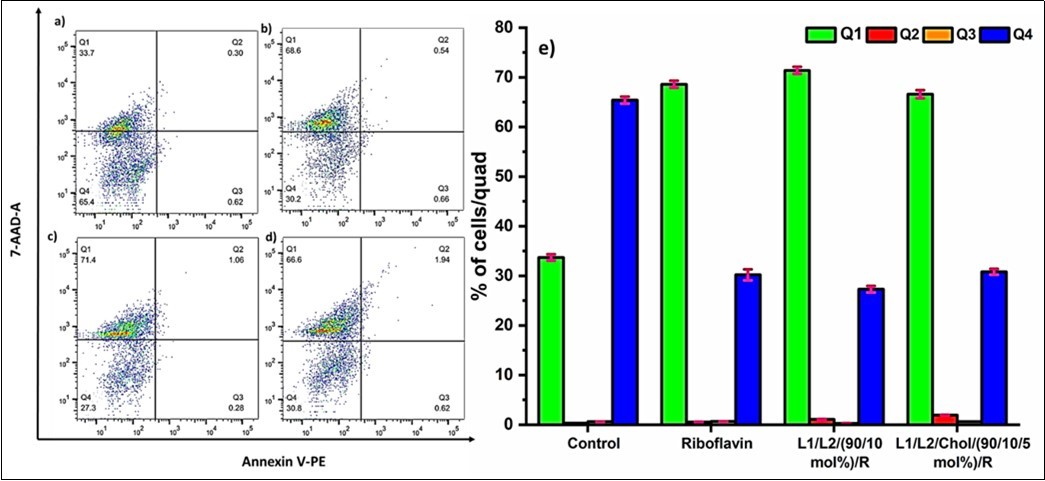

Previous studies have extensively reported the toxicity of encapsulated riboflavin in cancerous cells38, 505152 and the non-toxic behaviour of the lipid formulations 4853. This in vitro work further delved into investigating the nature of apoptosis of encapsulated riboflavin under UV radiation. The apoptosis was assessed using Annexin V PE and 7-AAD quadrants in DU145 cells as shown in Figure 3. Apoptosis is indicated by the increased intensity of Annexin V as it bind to the phosphatidylserine in the cancerous cells54. Q1 represents dead cells by necrosis (Annexin V PE-/7-AAD+),Q2 demonstrates dead cells by late apoptosis (Annexin V PE+/7-AAD+), Q3 represents early apoptosis (Annexin V PE+/7-AAD-) and Q4 represents live cells devoid of apoptosis or necrosis (Annexin V PE-/7-AAD-)55.

Control UV treated cells (Figure 3a) were 65.4% viable. The addition of riboflavin and photoactivation resulted in increase in necrotic cells at 68.6% as seen in Figure 3b and e. Similarly, cells treated with photoactivated formulations L1/L2 (90/10 mol%) with encapsulated RB, and L1/L2 (90/10) + 5 mol% cholesterol with encapsulated RB showed an increase in necrotic cells by 71.4% and 66.6% respectively as depicted in Figure 3c-e. Riboflavin is known to produce reactive oxygen species (ROS) upon activation by UV radiation which are lethal to cancerous cells 3556. The cancerous cell lines in the presence of unencapsulated riboflavin showed a maximum necrotic rate of 68.6%. Riboflavin encapsulated photopolymerizable formulations, showed an equal to higher necrotic rate in the same cell lines. Our previous studies have shown that riboflavin encapsulated riboflavin formulations have >50% encapsulation efficiency 38. This is noteworthy as encapsulated formulations shown similar rate of effectiveness as free riboflavin. The necrotic rate of cholesterol based formulation L1/L2 (90/10) with 5 mol% cholesterol was found to be lower than L1/L2 (90/10) alone, which probably attributes to the lower drug loading capacity by the liposomes in the presence of cholesterol. This could be due to the lower reduced fluidity caused by the cholesterol molecules in the lipid bilayer during the encapsulation process 5758. This was also supported by our DSC studies that demonstrated insignificant change in melting behaviour of the liposomal formulations impregnated with cholesterol. It should also be noted that riboflavin in the absence of photoactivation does not induce apoptotic pathways and in fact, exhibits anti-proliferative/anti-migratory effects 55. The mechanism of apoptosis/necrosis by ROS produced by encapsulated riboflavin is subject to further research.

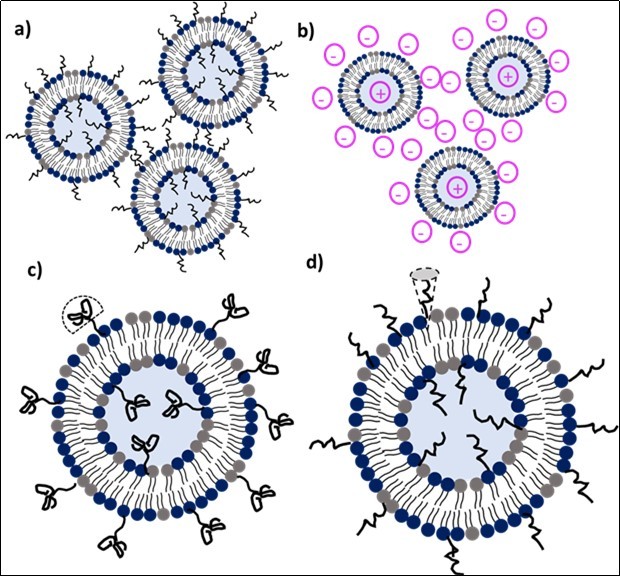

Agglomeration of liposomes is a key issue in drug delivery and vaccine design that can be addressed through electrostatic and steric stabilization shown schematically in Figure 4a and b. Another key requirement is their longer circulation times which can be achieved by rendering electrostatic stabilization that may be achieved by employing zwitterionic or uncharged surfaces to prevent their adherence to charged plasma proteins invivo59. This work focused on using zwitterionic lipids to create liposome formulations, and to address the agglomeration issues, PEGylated lipids were incorporated. The incorporation of conjugated PEG or PEGylated lipids in liposomal formulations prevented the overall agglomeration as seen from the size measurements. PEG chains are grafted to the surface of the liposomes on one end and based on their concentration and density they result in mushroom or brush-type configuration as depicted in Figure 4.

At lower concentrations, the PEG chains do not interact with each other and assume a mushroom-like random coiled configuration shown in Figure 4c. With an increasing concentration, the mushroom regime transitions to brush regime in which the PEG chains begin to uncoil or branch out and interact with each other as shown in Figure 4d. The transition from mushroom to brush regime happens when the following condition is fulfilled 60.

….(iii)

Where ????_p^????→???? is the mole fraction of PEG; for PEG lipids with chains of molecular weights 2000 (n_p=45) is presumed to occur at 0.014.

A₁is the membrane surface area per lipid molecule60.

Brush regime is preferred for drug delivery application for steric stabilization and longer circulation time616263. However, when the concentration of PEG chains in the brush regime increases the surrounding aqueous layer dehydrates resulting in aggregation64. This is observed in when the concentration of PEG lipids is increased from 10 to 20 mol% in LI/L2 (80/20 mol%) formulation, which aggregates after four weeks.

The hydrophilic nature of the elongated PEG chains in the brush regime tends to interact more with aqueous bulk than with the other grafted PEG chains of neighbouring liposomes, thereby preventing the agglomeration of the liposomes. The steric stabilization, W(ℎ)_stericbetween two liposomes of rendered PEG chains in brush regime of thickness Lb is quantified by

….(iv)

where kB is the Boltzmann constant, Lb = (NEO × l ^5/3 /s ^2/3). NEO is the number of monomers in the PEG chain, l is the effective segment length and s is the distance between the grafting points65.

The presence of DSPE-PEG2000 at 10 mol% in L1/L2 (90/10) formulation enabled the steric stabilization of DC_8,9PC vesicles as evidenced by the size and zeta potential measurements in Figure 1, which is further supported by previous studies 48.

The enthalpy of transitions which quantifies the inter and molecular interactions, was found to increase in L1/L2 (90/10) and L1/L2 (80/20) formulations from week 1 to 4 with an accompanying decrease in the melting transition temperature as shown in Figure 2a. This is attributed primarily to the interaction and subsequent entangling of PEG chains which further increases the van der Waals forces. The energy required to overcome this van der Waals forces which is represented by an increase in enthalpy. Based on the DSC studies, it is noteworthy that increased concentration of PEGylated lipids from 10 to 20 mol% in the liposomal formulation, the resultant enthalpy of transition increases due to intermolecular interactions between the various lipid bilayer components.

(Figure 2b) summarizes the combined effects of cholesterol and PEG on the thermal stability of the liposomal formulations. In L1/L2 (90/10) mol%, for every DSPE-PEG lipid there are 114 DC_8,9PC lipid molecules. When 5 mol% cholesterol is added, there are 2 cholesterol molecules per one PEG molecule. It is implied that the addition of cholesterol to PEGylated lipids render thermal stability to the lipid bilayer owing to their known stabilizing properties of the liposomes. This is could possibly be due to the lowered molecular interactions between the lipid components in presence of cholesterol in the lipid bilayer. Cholesterol, being hydrophobic gets incorporated in the bilayer region of the liposomes that results in an reorganized packing and respacing of lipids in the bilayer5866 limiting the interaction among the PEG chains which in turn lowers the van der Waals force 67. This results in a slight increase in melting transition temperature is accompanied by a decrease in the enthalpy. Additionally, the presence of PEG and cholesterol also induce heterogenicity to the bilayer, resulting in a lateral phase separation4468 which is supported by the broadening of melting peaks mostly seen during week 4 measurements indicated by blue lines on Figure 2b.

DSC and size analysis indicated the stability of DC_8,9PC/DSPE-PEG2000 (90/10) with and without 5 mol% cholesterol, which were further encapsulated with riboflavin. The riboflavin encapsulated formulations in absence of cholesterol showed an enormous change in enthalpy suggesting major intermolecular events in the lipid bilayer as seen on Figure 2c. This is attributed to the hydrophilicity of riboflavin that results in their encapsulation in the aqueous core and bound on the hydrophilic headgroup region of the bilayer that further increases the spacing and packing between the lipids 38. The presence of cholesterol, however, counterbalances this lipid disorganization due to riboflavin binding consequently reducing the molecular forces responsible for the enthalpy change. Additionally, it is proposed that the presence of riboflavin in the aqueous core also prevents the entanglement of PEG chains in the formulation further reducing the interactions between the PEG groups thereby concurrently reducing the enthalpy change in encapsulated formulations.
